O.S. #15638 - 55HZ HYPER w/Power Boost Pipe 55 OS-72144000  [OS-15638]

O.S. #15638 - 55HZ HYPER w/Power Boost Pipe 55 (OS-72144000)
Price:
NZD$634.76
Brand:
O.S. Engine
Model:
OS-15638
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Engine / Glow Plug - Helicopter Engines category
Write a review
O.S. Engine item 15638 - 55HZ HYPER w/Power B Pipe 55 OS-72144000 Helicopter Engines Engine / Glow Plug

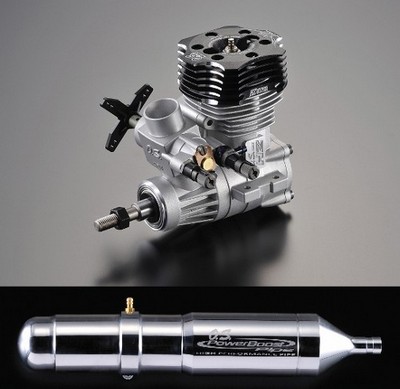

This O.S. Max .55 HZ Ring Hyper Helicopter engine is sold with Hyper Cooling Mind and 40L Carburetor. It's a good idea suited to 3D journey! Amazing energy total up to 60 size motor changes the standard knowledge of the 50 size helicopter devices! It could be arranged in the 50 size helicopter without modification because of the identical mounting bolt pattern and silencer installing size even though the 50SX-H Hyper. Groundbreaking rear bearing is employed for improved anti-rusting, greater durability and a lot more stable high rate running. Newly created 40L carburetor features twin needle.

The PowerBoost pipeline is a sliencer developed entirely usage of Max-55HZ Hyper / 50 SXH Hyper. This Sliencer provides exemplary effective in th R.P.M. range utilized frequently in doing maneuvers, although it secures the security in idlling and hovering.

Features:

  • Ideal for 3D flight-power corresponding to .60 size heli machines
  • Ideal to be employed in just about any 50 program helicopter
  • major internal components are newly developed pursuing the utmost effective performance essential for the 50 size helicopters.
  • Same mounting bolt pattern and silencer size because of the fact OS 50SX-H Hyper
  • Dual needle 40L carburetor with four supply throttle lever to be utilized with choice of servo brands
  • OS Powerboost pipeline provides excellent performance from high RPM manuevers to idling and hovering. Polished normal finish aluminum construction

Includes:

  • One O.S. Max .55 HZ Helicopter engine (OS 15630) with Hyper Cooling Head, 40L carburetor, #8 radiance plug, English guide
  • OS 50/55 PowerBoost Exhaust Pipe with two 3.5x18mm socket brain limitation screws, two lock washers, anxiety nipple and instruction sheet

Specs:

OS Max 55 HZ

  • Displacement: 8.93cc / 0.55cu.in
  • Bore: 23mm / 0.91 in
  • Stroke: 21.51mm / 0.85in
  • Practical RPM: 2,000-20,000 RPM
  • Production: 2.1ps/17,000 RPM
  • Body weight: 408g / 14.39oz

OS PowerBoost pipeline

  • Length: 9.6" (244mm)
  • Diameter: 1.7" (44mm) at thickest point
  • Distance Between Muffler Mounting Hole Centers: 1.4" (37mm)
  • Exhaust Outlet Diameter: 0.35" (9mm)
  • Output: 2.1ps/17,000 RPM
