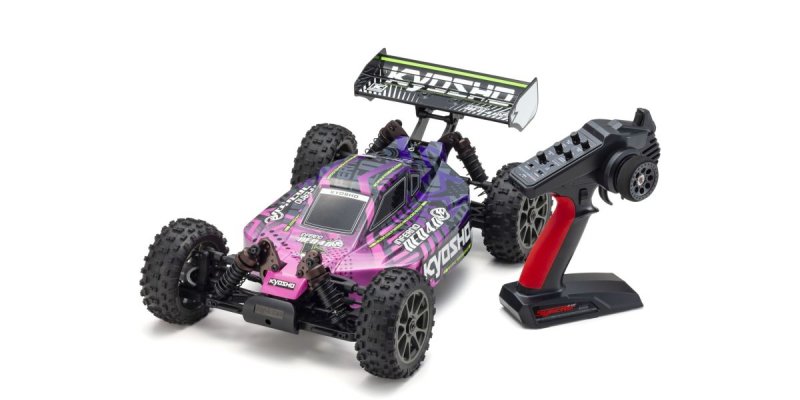

Kyosho 34118T1S INFERNO NEO 4.0 VE - 1:8 Readyset Built Around an Aluminium Chassis
The Kyosho 34118T1S INFERNO NEO 4.0 VE ships as a factory Readyset that couples a strong mechanical layout with ready-to-use electronics, ideal for immediate running. The package pairs an aluminium main chassis with a shaft-driven full-time 4WD drivetrain, high-volume resin big-bore shocks, and a brushless motor to balance structural strength and suspension compliance.
Chassis and drivetrain characteristics
The aluminium main chassis offers a controlled balance of stiffness and flex, with grey plastic side guards providing protection and a neat look. Power transfers via a shaft-driven full-time 4WD system with accurate ring and pinion gears in the front and rear diffs, plus a metal centre differential with machined gears for increased longevity. A 1.0-module metal main gear and beefed-up gear train are specified to cope with 1:8 brushless power levels.
Suspension and damping design
Double wishbone suspension at both ends delivers generous travel for varied off-road surfaces. The model is equipped with large-capacity, factory-filled big-bore resin shocks designed to produce consistent damping without immediate servicing. Turnbuckles on suspension arms and steering rods allow quick adjustment of link lengths for setup tuning.
Electronics, powertrain, and protective details
The Readyset includes a brushless motor, a Syncro KT-231P+ 2.4GHz pistol-grip transmitter, and a high-torque steering servo. A dust-proof receiver box also acts as a servo mount to shield electronics from grit while permitting easy access via a pinned cover. The two-piece motor mount secures the motor and simplifies gear mesh adjustments under vibration.
Build quality, serviceability, and component layout
Pre-assembled linkages and sealed components reduce the time to first run for owners who prefer a finished product rather than a full kit build. The layout features full bearing support across the drivetrain and precision-cut differential gears to enhance mechanical efficiency. Battery trays accept several pack sizes and the fastener system secures packs during spirited driving.
Who this model suits
This Readyset is well suited to hobbyists who want a rugged 1:8 electric buggy that is ready from the box. It will appeal to collectors seeking a neatly finished model and to drivers who want a mechanically stout platform without a lengthy build sequence.
Specifications
- Model: Kyosho 34118T1S INFERNO NEO 4.0 VE
- Scale: 1:8
- Drivetrain: Full-time 4WD, shaft drive
- Chassis: Aluminum main chassis with gray plastic side guards
- Length: 496 mm
- Width: 307 mm
- Height: 189 mm
- Wheelbase: 323-328 mm
- Tread (F/R): 258 mm / 261 mm
- Tire (F/R): 115x45 mm
- Gear Ratio: 12.7:1
- Weight: 3,550 g (approx.)
- Transmitter: 2.4GHz Syncro KT-231P+
- Electronic Speed Control (ESC): Not Included
With factory assembly and robust components, the Kyosho 34118T1S INFERNO NEO 4.0 VE offers a convenient and durable 1:8 brushless 4WD Readyset for pilots who prefer ready-to-run performance.
