4-12S Aircraft Brushless ESC 70AMP FUMC970A by Futaba  [FUMC970A]

FUTABA MC970A 70AMP 4-12S LI-PO BRUSHLESS MOTOR CONTROLLER ESC WITHOUT BEC
Price:
NZD$77.21
Brand:
Futaba
Model:
FUMC970A
Condition:
Brand New
Write a review

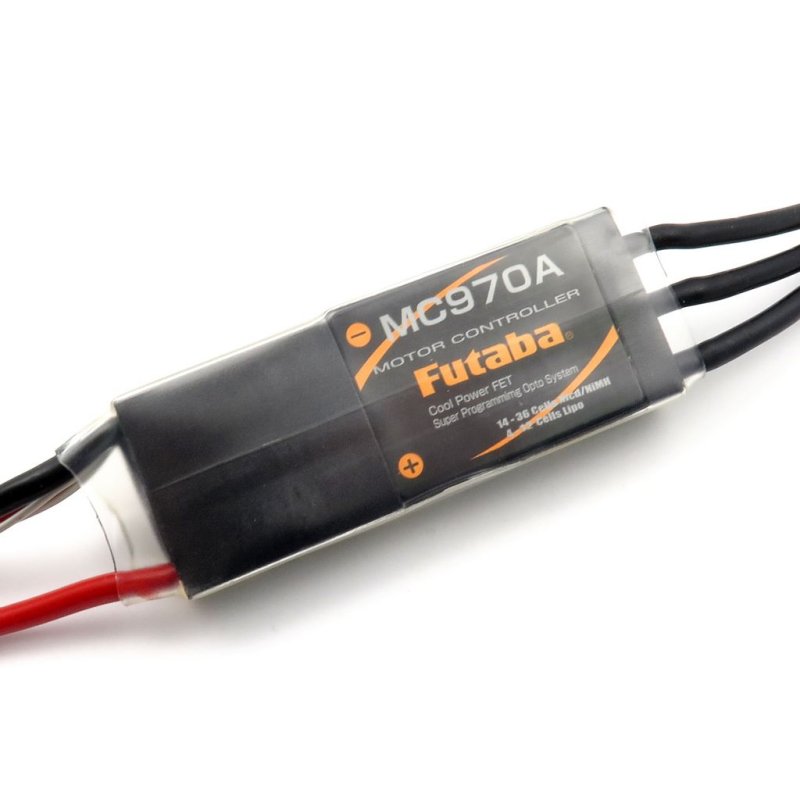

alt="FUTABA MC970A 70AMP 4-12S LI-PO BRUSHLESS MOTOR CONTROLLER ESC WITHOUT BEC" title="FUTABA MC970A 70AMP 4-12S LI-PO BRUSHLESS MOTOR CONTROLLER ESC WITHOUT BEC"

Overview for Electric Aircraft ESCs

The Futaba FUMC970A is a compact brushless electronic speed controller made for RC aircraft power systems that use multi-cell Li-Po batteries and brushless motors. The designation signals 70AMP continuous capability, 4-12S Li-Po compatibility, and the lack of an integrated BEC.

When installing the ESC, prioritise correct power routing, connector security, and sufficient cooling. Because no BEC is included, fit an external UBEC or separate regulator to supply the receiver and servos. Mounting with vibration isolation and maintaining airflow around the ESC housing will help preserve performance under sustained loads; ensure wiring is rated for continuous 70AMP currents.

Programming and setup should follow Futaba guidance for the FUMC970A when adjusting timing, governor-related settings, and braking behavior. Choose a motor and propeller that keep continuous and surge currents within safe limits for the 70AMP rating and perform thermal verification during bench runs prior to operational flights.

Specifications

  • Item: Brushless motor electronic speed controller (ESC)
  • Material: Electronic components and PCB assembly
  • Model Number: FUMC970A
  • Compatibility: Suitable for brushless motors; supports 4-12S Li-Po battery systems for aircraft use
  • Current Rating: 70AMP (as stated in product name)
  • BEC: No built-in BEC (without BEC)

For pilots assembling high-current propulsion systems without onboard receiver power, the FUMC970A offers a clear performance envelope and should be used with an external power source and appropriately matched motors.

How should the ESC be ventilated inside a closed fuselage?

Provide direct airflow paths or a duct to the ESC area and avoid tightly sealed bays; forced ventilation or strategic cutouts will reduce case temperature under load.

What mounting techniques reduce vibration issues?

Use soft-mount pads or foam between the ESC and airframe and secure leads to limit movement. Damping reduces stress on solder joints and connectors over time.

Can I use an external UBEC and which output voltage is typical?

Yes. Fit a UBEC sized for your servos and receiver; 5V or 6V outputs are common depending on servo requirements, and the UBEC should handle the combined servo current draw with headroom.

How do I program the FUMC970A for governor or advanced modes?

Use the programming tools and procedures recommended by Futaba for the FUMC970A to set governor behavior, timing, and other parameters; follow official instructions to avoid unsafe configurations.

What wire gauge is advisable for the main battery leads?

Select battery and motor leads rated for continuous 70AMP service; heavier gauge wires reduce voltage drop and heat buildup during sustained draws.

How can I verify ESC temperatures before first flight?

Run a bench test at representative throttle settings while monitoring case temperature with a thermometer or infrared sensor, and ensure temperatures remain within safe margins under sustained load.
