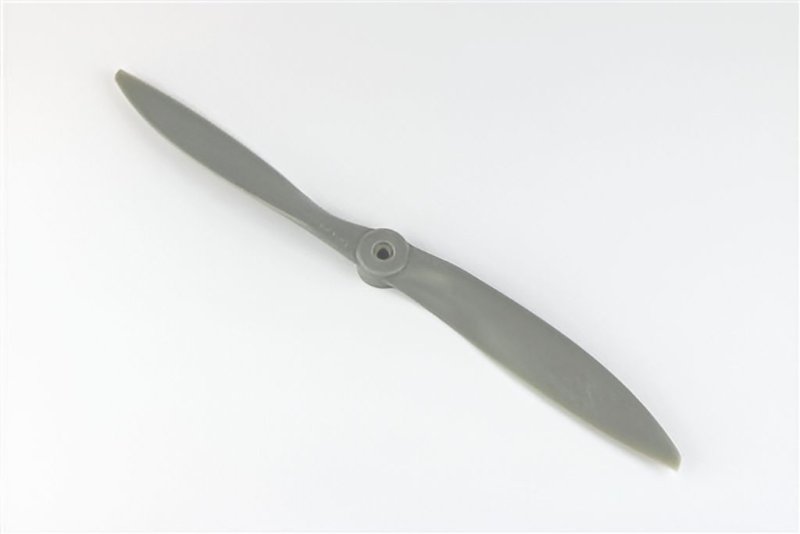

APC AP1712W 17x12W Wide-Blade Propeller (140 Pattern)  [AP1712W]

Performance Summary for APC AP1712W

Designed as a scale-style replacement, the APC AP1712W propeller delivers the wide 140 blade form factor to enhance slow-speed thrust and acceleration on fixed-wing models. The 17x12W code indicates diameter and pitch with a wide blade profile that affects airflow characteristics and motor loading in comparison to slimmer props.

Use it as a spare or during prop trials to dial in climb rates, throttle feel, and low-speed handling. Always pair prop choice to motor KV, ESC limits, and aircraft weight rather than assuming cross-compatibility between different platforms.

Fitting advice: inspect the prop bore and mounting surfaces for any imperfections, make sure the prop sits flush on the adapter or spinner backplate, and torque the retaining nut to the motor manufacturer's recommendation while checking for any axial or radial runout. Balance the prop statically and dynamically before the first flight to reduce unwanted vibration.

Tuning guidance: a wide 140 pattern tends to increase low-end thrust while drawing more current than smaller-pitch or narrower blades. Keep an eye on motor and ESC temperatures during tuning and switch to a different pitch or blade profile if overheating or excessive vibration occurs.
