ARRMA MINI KRATON 3S 1mm Stainless Bearing Wheelie Bar MAKM040R for MINI KRATON 3S by GPM  [MAKM040R]

ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R
Price:
NZD$33.34
Brand:
GPM
Model:
MAKM040R
GTIN:
4894538412482
Condition:
Brand New
Write a review
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"
alt="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R" title="ARRMA MINI KRATON 3S Stainless Steel Bearing Wheelie Bar Thick 1mm - GPM MAKM040R"

Designed for MINI KRATON 3S rear protection

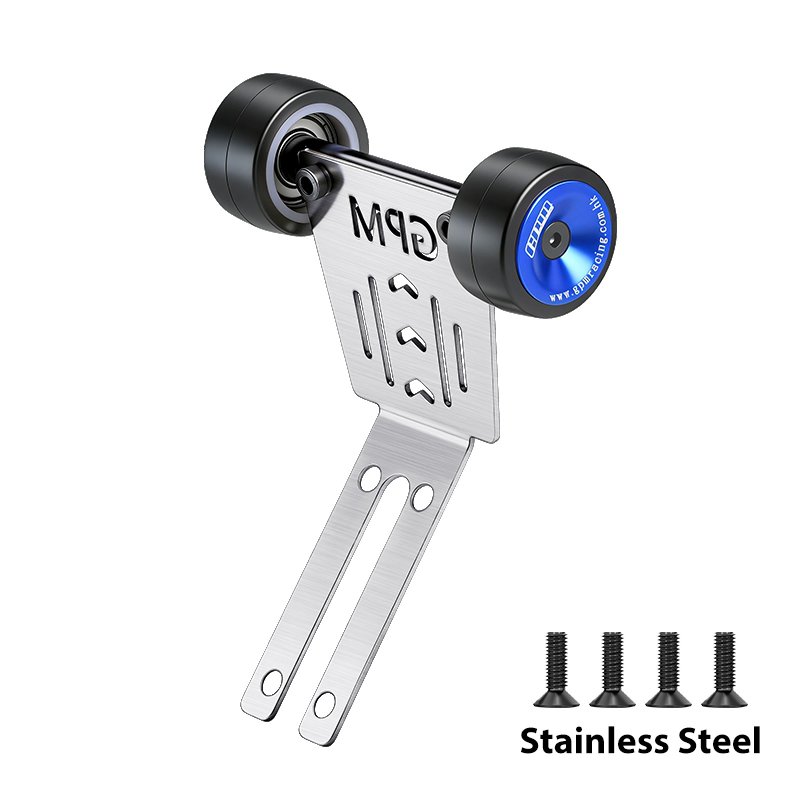

This stainless steel wheelie bar is an aftermarket replacement tailored to fit ARRMA 1/16 MINI KRATON 3S frames, offering solid rear support to control wheelstands and resist impact. The component is CNC machined at a nominal 1mm thickness to maintain stiffness without adding unnecessary mass, and the pre-installed bearing wheels rotate under load to reduce debris intrusion into the chassis area.

Installation typically requires basic removal of the rear bumper area. The bar locates into the chassis cavity with a tight footprint to minimise slop, and the supplied black Grade 12.9 screws are for metal-to-metal fixation. Use medium-strength thread-lock on screws that cut into metal, and consider a removable thread adhesive on screws that pass through into the bar so future servicing is simple.

Service needs are light: clean the bearing wheels occasionally and recheck screw torque after early runs. Bearings arrive sealed but inspect after sandy or muddy use and service or swap them if rotation becomes gritty.

  • Contents: stainless steel bearing wheelie bar with fitted bearing wheels and the supplied set of Grade 12.9 black screws as supplied by the manufacturer.

Compatible Models

  • ARRMA 1/16 MINI KRATON 3S DSC 4X4 RTR Brushless Speed Truck-ARA2508S
  • ARRMA 1/16 MINI KRATON 3S DSC 4X4 RTR Brushless Speed Truck-ARA2508

For MINI KRATON 3S owners wanting a durable rear brace to tame wheelies and add bumper protection, this CNC-cut stainless wheelie bar is a direct-fit, maintainable upgrade that suits regular upkeep.

No chassis cutting is normally required. The bar is shaped to sit in the stock rear recess, but check alignment before final tightening.
1mm stainless provides a good compromise between stiffness and weight; it resists flex and handles impacts better than thinner sheet metal.
Use medium-strength thread-lock where screws bite into metal threads. For screws that go into the bar, choose a removable locking compound so you can service the part later.
After rough runs, clear grit from the bearings, spin them to confirm smooth rotation, and retighten screws if any have loosened.
