ARRMA Mini Kraton 3S 38T 0.8 Center Differential with Motor Plate and 15T Pinion MAKM1538S by GPM  [MAKM1538S]

Precision center diff for compact 1/16 trucks

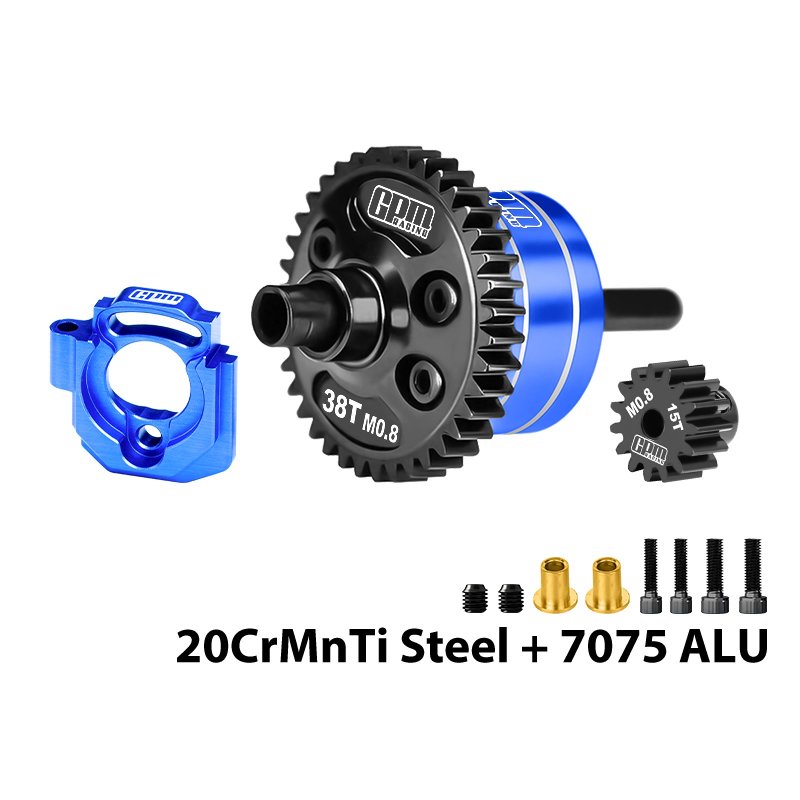

This fully assembled center differential is a precision aftermarket upgrade for ARRMA Mini Kraton 3S vehicles and serves as a direct replacement for factory part number ARA-2985. The internals use 20CrMnTi steel gears in a 7075 aluminum housing, and the gear profile has been strengthened to improve meshing and reduce drivetrain drag.

The assembled unit is a 38T, module 0.8 differential built for 3.175mm motor shafts. The package includes a motor plate plus a 15T motor pinion (0.8 mod) and accepts motor pinions sized 11T-23T on the same 3.175mm bore. Note that differential oil is not included, so viscous fluid must be added to set damping and handling balance.

Installation notes: many subcomponents come pre-assembled where applicable, and use of medium-strength threadlocker on critical screws is recommended to prevent loosening during running. The motor plate and hardware provided allow replacement of the center assembly without major chassis changes.

Tuning guidance: since the diff is shipped dry, tailor viscous damping to your setup. As a benchmark try 50K CST front, 30K CST rear, and considerably higher values such as 500K CST or 1000K CST in the center depending on traction and steering feel desired.

This center differential kit is aimed at 1/16 ARRMA Mini Kraton 3S owners who want a stronger, metal-gear central unit with an included motor plate and 15T pinion, offering a clean replacement for ARA-2985 with extended pinion options.
