ARRMA Talion 6S EXB Rear Outer Lower Suspension Pin 4x49mm MTV6/PIN49 by GPM  [MTV6/PIN49]

ARRMA Talion 6S EXB 4140 Steel Rear Lower Suspension Pins (Outside) 4x49mm - GPM MTV6/PIN49
Price:
NZD$8.40
Brand:
GPM
Model:
MTV6/PIN49
Condition:
Brand New
Write a review

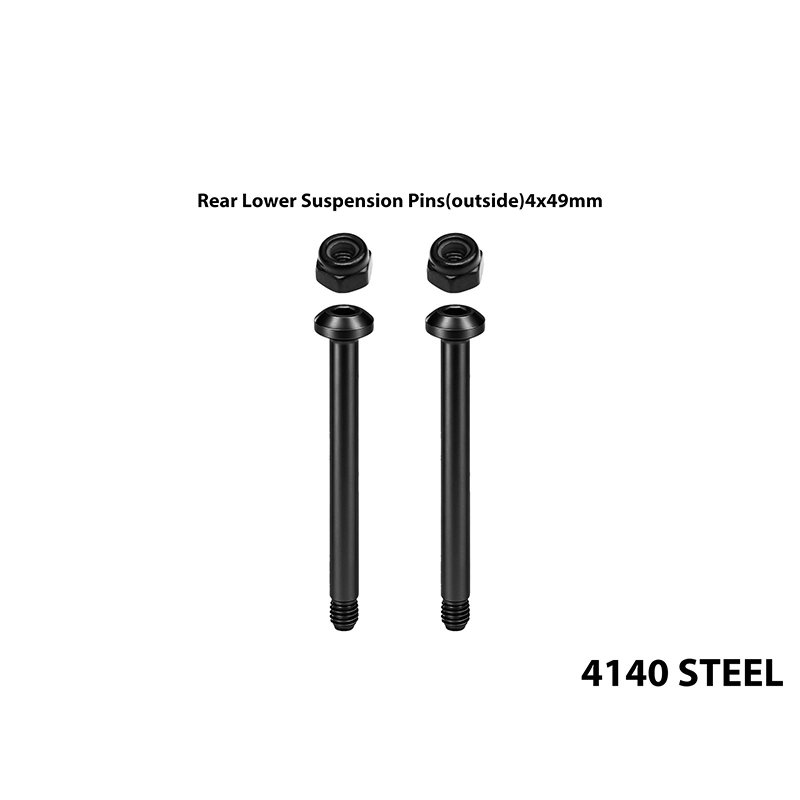

Rear outer lower suspension pin specification 4x49mm

This is an aftermarket replacement pin set intended for ARRMA Talion 6S EXB scale models, supplied by GPM as part number MTV6/PIN49. The pins are machined from 4140 steel, heat-treated and blackened to resist wear under repeated loading in RC suspension systems. They replace factory part AR330194 and are sized 4x49mm for the outside rear lower suspension location.

These pins serve as the pivot and retention point for the rear lower suspension arm; accurate seating and a secure fit maintain correct suspension geometry and consistent handling. The set ships pre-assembled where applicable, and a medium-strength thread locker is recommended on associated fasteners to help prevent loosening under heavy use.

For installation: remove the existing rear lower arm hardware, press out the factory pins, install the new 4x49mm pins, refit locknuts and torque to the vehicle maker's specs. After fitment check travel, wheel alignment and ensure there is no binding at the pivot.

Compatible Models

  • ARRMA 1/7 Talion 6S EXB 4X4 RTR Brushless Speed Truck-ARA7707V6
  • ARRMA 1/8 Talion 6S 4X4 RTR Brushless Speed Truck-ARA106048
  • ARRMA 1/8 Talion 6S BLX 4WD Extreme Bash Speed Truggy RTR-ARA8707
  • ARRMA 1/7 Fireteam 6S 4X4 BLX Speed Assault Vehicle RTR-ARA7618
  • ARRMA 1/7 Big Rock 6S 4X4 BLX Monster Truck RTR-ARA7612
  • ARRMA 1/8 Notorious 6S BLX 4WD Brushless Classic Stunt Truck With Spektrum RTR-ARA106044
  • ARRMA 1/8 Notorious 6S V5 4X4 BLX Stunt Truck With Spektrum Firma RTR-ARA8611V5
  • ARRMA 1/8 Kraton 6S BLX 4WD Brushless Speed Monster Truck With Spektrum RTR-ARA106040
  • ARRMA 1/8 Kraton 6S 4X4 Roller Brushless Speed Truck-ARA106053
  • ARRMA 1/8 Kraton 6S V5 4X4 BLX Speed Monster Truck With Spektrum Firma RTR-ARA8608V5
  • ARRMA 1/8 Kraton 6S EXB AVC 4X4 RTR Brushless Speed Truck-ARA8708T1
  • ARRMA 1/8 Kraton 6S EXB 4X4 RTR Brushless Speed Truck-ARA8708V6
  • ARRMA 1/8 Outcast 6S BLX 4WD Extreme Bash Stunt Truck RTR-ARA8710
  • ARRMA 1/8 Outcast 6S BLX 4WD Brushless Stunt Truck RTR-ARA106060
  • ARRMA 1/8 Outcast 6S BLX 4WD Brushless Stunt Truck-ARA106042
  • ARRMA 1/8 Typhon 6S 4X4 RTR Brushless Buggy-ARA106046
  • ARRMA 1/7 Infraction 6S 4X4 RTR Brushless All-Road Street Bash-ARA109001
  • ARRMA 1/7 Limitless 8S Avc 4X4 RTR Brushless Street Speed-ARA7816
  • ARRMA 1/7 Limitless 8S AVC 4X4 RTR Brushless Street Speed Machine Combo-ARA7816SPMX
  • ARRMA 1/7 Limitless 6S V2 Speed Bash Roller-ARA7116V2
  • ARRMA 1/7 Limitless All-Road Speed Bash-ARA109011
  • ARRMA 1/7 Mojave 6S BLX 4WD Brushless Desert Truck RTR-ARA106058
  • ARRMA 1/7 Mojave 6S V2 4X4 BLX Desert Truck With Spektrum Firma RTR-ARA7604V2
  • ARRMA 1/7 Mojave 6S EXB 4X4 Roller Brushless Desert Truck-ARA7204
  • ARRMA 1/8 Typhon 6S V5 4X4 BLX Buggy With Spektrum Firma RTR-ARA8606V5
  • ARRMA 1/8 Notorious 6S V6 4X4 BLX Brushless Stunt Truck RTR-ARA8611V6
  • ARRMA 1/8 Kraton 6S 4X4 BLX Brushless Speed Monster Truck RTR-ARA8608V6
  • ARRMA 1/7 Felony 6S BLX Street Bash All-Road Muscle Car RTR-ARA7617V2
  • ARRMA 1/7 Infraction 6S BLX V2 All-Road Truck RTR-ARA7615V2

Will these pins fit the Talion 6S EXB outside rear location?

They are sized for the outside rear lower suspension on Talion 6S EXB and are intended as a direct swap for the original pins.

Any special tools or adhesives required?

No special tools are needed beyond typical chassis service tools. Use a medium-strength thread locker on the fasteners to keep them secure during heavy running.

How are these pins treated to resist wear?

Manufactured from 4140 steel, these pins undergo heat treatment and a blackened finish to increase hardness and reduce surface wear.
