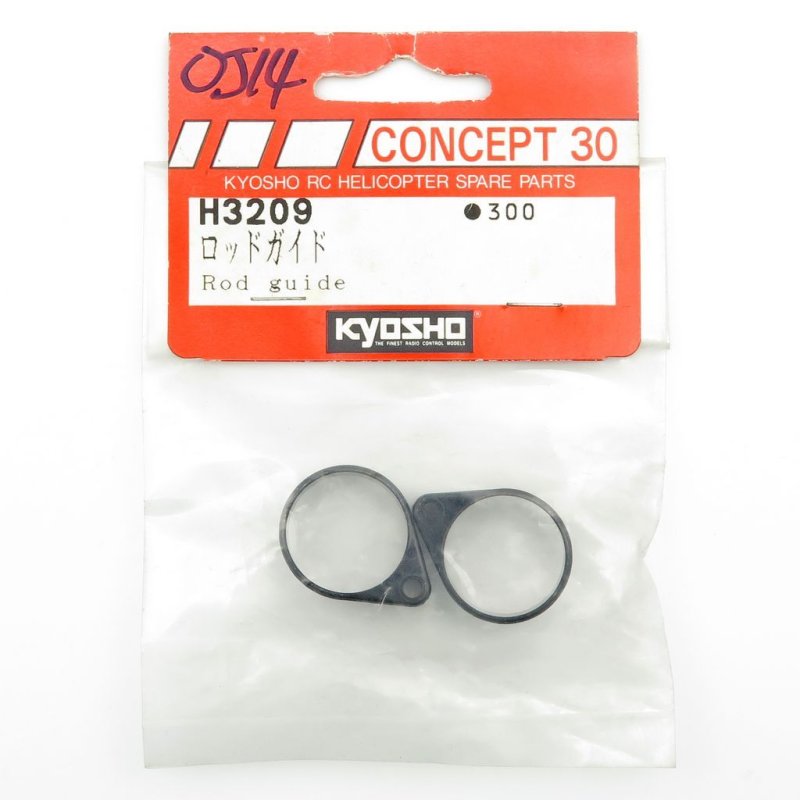

Concept 30 Replacement Rod Guide for Smooth Linkage Operation - H3209 Kyosho  [KYH3209]

Guide for Concept 30 control rods

The Kyosho H3209 rod guide functions as a dedicated spare for Concept 30 helicopters, providing a stable bearing surface for control rods and preventing lateral movement where an original guide has deteriorated.

This is a like-for-like replacement whose purpose is to reinstate correct rod travel, limit play at pivot points, and preserve the intended linkage geometry. It is intended to return the assembly to proper function rather than change handling characteristics.

Fitting is simple for those accustomed to Concept 30 layouts: remove the old guide, clean the mounting area, seat the H3209 in the same orientation, and tighten the original retention hardware. Once installed, move the control linkage through its range to ensure unobstructed motion and correct alignment prior to flight.

Treat the rod guide as part of scheduled maintenance to keep trim stable and reduce the need for repeated corrections. A well-seated guide makes follow-up tuning of swashplate and tail linkages quicker and more predictable.
