Overview: GF30 crankcase role

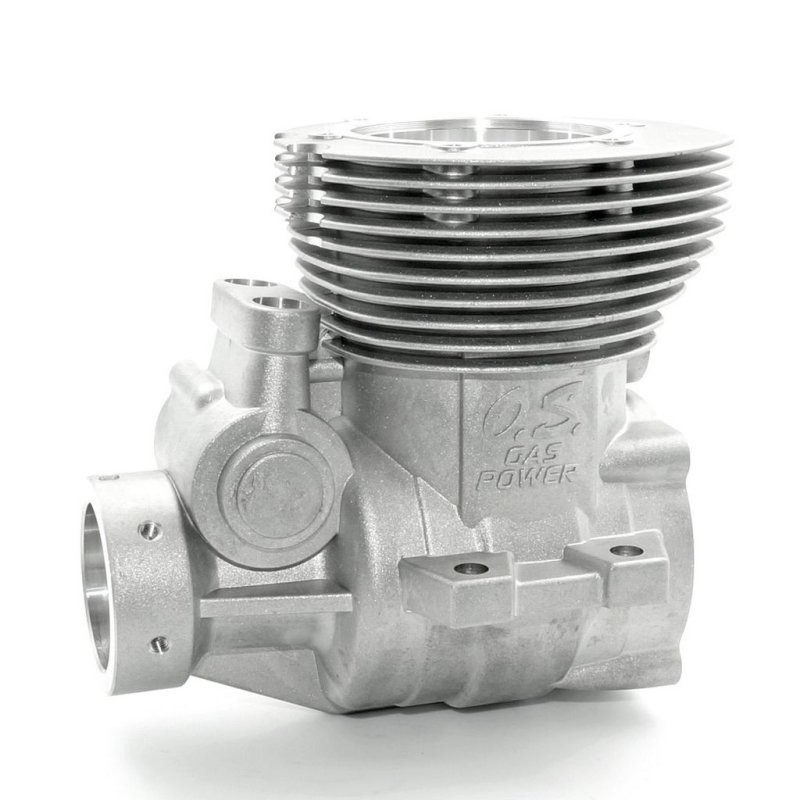

This unit is the replacement crankcase referenced as O.S. Engine OS4A001000, made for use with GF30-designated RC engine assemblies. The text that follows outlines the component's role, what to inspect prior to installation, and practical installation and tuning notes without assuming a specific engine variant.
Purpose within the engine: the crankcase locates and secures the crankshaft and supports internal moving parts during rotation, serving as the structural core of an RC engine. When rebuilding, assess mating surfaces, bearing seats, and sealing areas on the removed crankcase before fitting the replacement.
Pre-fit verification: check that your engine's model code or manual lists OS4A001000, examine bearings and seals for wear, and collect any gaskets or adhesives your engine requires. If bearings are reused from the old case, verify their condition and correct placement.
Fitting advice: disassemble following the manufacturer's service order, transfer bearings and location pins in the original sequence, match sealing faces closely, and tighten bolts progressively to ensure even clamp. Avoid using assumed torque numbers; consult the service manual for correct torque specs.
Impact on tuning: installing a new crankcase can change clearances and alignment, so after reassembly confirm smooth crank rotation, verify intake and exhaust sealing, and observe any changes in idle. Only adjust needle settings once mechanical integrity is confirmed.
Specifications
- Item: Crankcase
- Model Number: OS4A001000
This O.S. Engine OS4A001000 crankcase is offered as a replacement for GF30-designated RC engines and is aimed at hobbyists comfortable with engine teardown and reassembly tasks.
