Tamiya 45029 - TEU-101BK Race-Ready ESC Module  [45029]

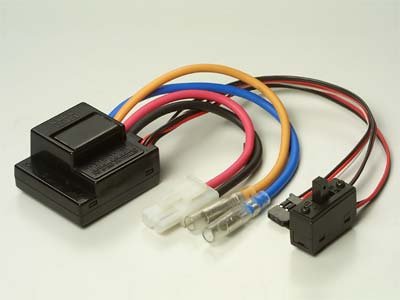

Tamiya 45029 - ESC / Electronic Speed Controller TEU-101BK
Price:
NZD$117.89
Brand:
Tamiya
Model:
45029
GTIN:
4950344450299
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Control precision with the Tamiya TEU-101BK ESC

The Tamiya 45029 - TEU-101BK Electronic Speed Controller gives precise speed management for club racers and hobbyists. It pairs with Tamiya 540 and Sport Tuned stock motors and supports both forward and reverse functions; you can switch reverse to brake for events where reverse is not permitted.

Wide plug support and adjustable throttle limits

This ESC is compatible with a variety of receiver connectors including Futaba, Tower Hobbies, Tamiya, KO, JR, and Airtronics Z so you can fit it to many radio systems without adapters. The onboard set button allows you to cap maximum throttle in either direction for safer, more predictable handling on different tracks.

Specifications

  • Dimensions: 40.7mm x 36.8mm x 22.5mm
  • Weight: 54g
  • Control System: High frequency drive
  • Max Continuous Current: Forward 60A, Reverse 60A
  • Power Supply: 7.2V (6 cells)
  • Output Voltage for Receiver: 7.2V
  • Output Current for Receiver: 1A

For those upgrading stock electronics, the Tamiya TEU-101BK balances straightforward setup with useful throttle tuning and broad connector compatibility.

Yes, the reverse function can be set to a brake mode so the ESC complies with race classes that prohibit reverse driving.
In most cases no adapter is required because the unit accepts Futaba, Tower Hobbies, Tamiya, KO, JR, and Airtronics Z connectors. Match the provided lead to your receiver plug type.
Use the set button to reduce the maximum forward throttle and consider gearing down the motor to make throttle response milder for new drivers.
