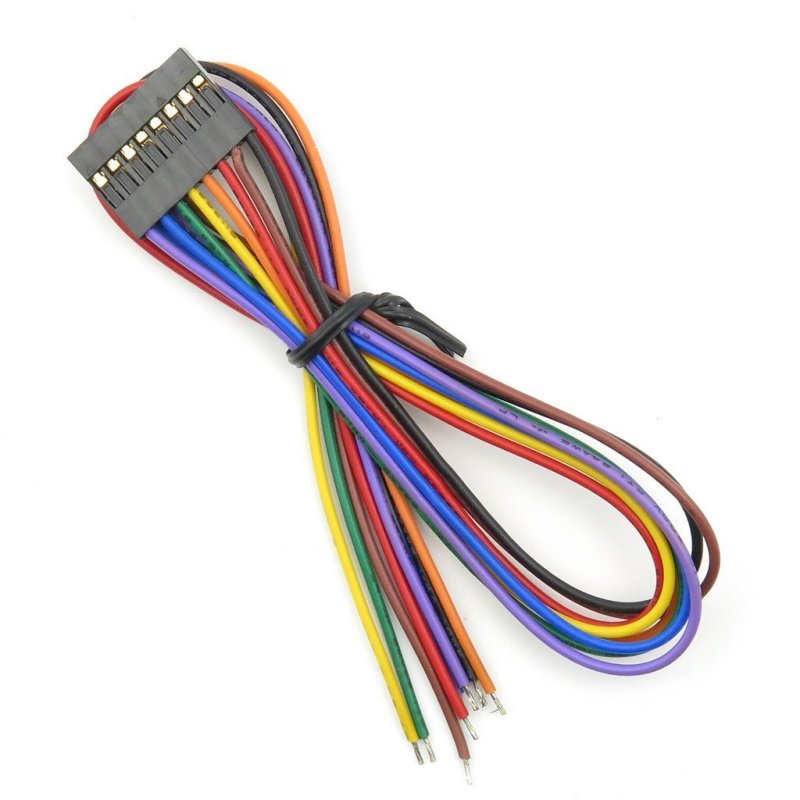

This Bantam CSEAC111 8-pin connection cable connects an E-Station 701 charger to a device under test or to a charge adapter. It is intended to offer a simple, serviceable link between charger and battery harness without modifying charger electronics or settings.
Use the lead for bench charging, replacing a worn connector, or routing from a charger to a custom adapter harness. Typical installation is plug-and-play: match the 8-pin mating faces, press pins in gently, and ensure the connector locks before applying power. Confirm the correct orientation to prevent bent pins.
To prolong service life, keep contact surfaces free of dirt, avoid tight bends at the connector exit, and store the cable loosely coiled. On a bench, route the cable to prevent accidental pulls that can stress the charger socket or plug.
As part of setup and test routines, the cable lets you move charger connections quickly, link to monitor rigs or test jigs, and route power to auxiliary devices during checks. It does not perform diagnostics itself but supports everyday charging and bench tasks.
