Front Lower Suspension Mount for ARRMA Kraton 6S EXB - MAK008N/V1 by GPM  [MAK008N/V1]

ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1
Price:
NZD$36.70
Brand:
GPM
Model:
MAK008N/V1
Condition:
Brand New
Write a review
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"
alt="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1" title="ARRMA KRATON 6S EXB SPEED TRUCK 7075-t6 Alloy Front Lower Suspension Mount - GPM MAK008N/V1"

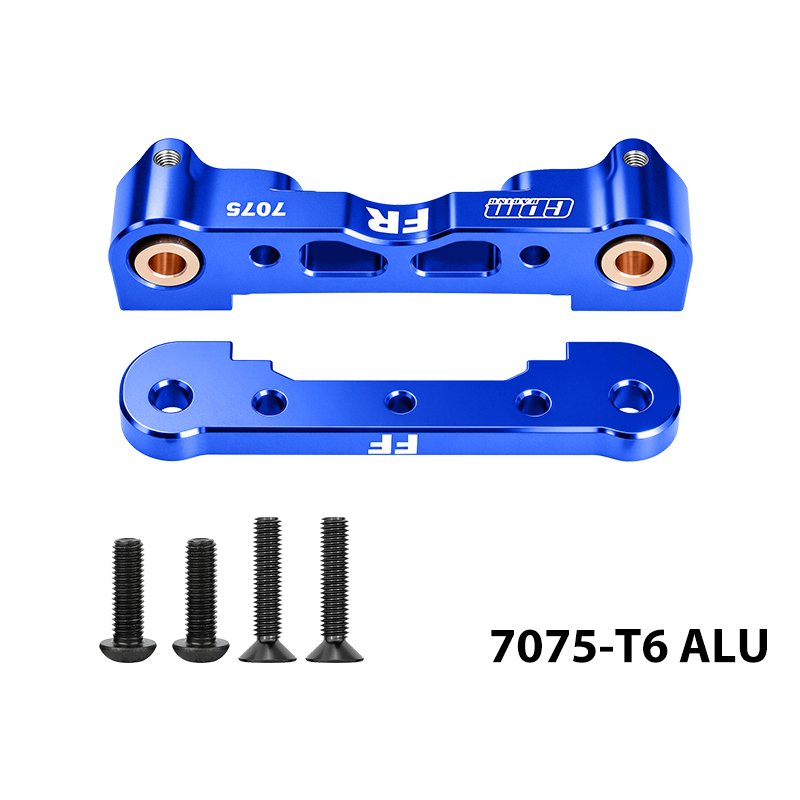

Front lower arm mount for ARRMA Kraton platforms

This front lower suspension mount is CNC-machined as a scale replacement for ARRMA Kraton 6S EXB style machines. Constructed from 7075-T6 aluminum and fitted with brass inserts where hinge pins seat, it improves pivot fit and reduces unwanted movement in the front suspension assembly.

Design notes: 7075-T6 gives superior strength and wear resistance relative to common chassis plastics, and brass inserts concentrate wear at a replaceable metal interface to limit gap and enhance stability under load. Supplied as a matched pair to replace the OEM front lower mounts AR330378 and AR330379.

Fitment and setup: the part installs into the front gearbox and lower arm location; ensure hinge-pin alignment and even fastener torque during assembly. Expect minor changes to steering response and suspension compliance due to altered local stiffness; perform standard setup checks on camber, toe and shock positions after installation.

Package contents

  • Front Lower Suspension Mount - 2pcs
  • Grade 12.9 Black Round Head Screw 3x12 - 2pcs
  • Grade 12.9 Black Flat Head Screw 3x14 - 2pcs

Original Name / Part No:

AR330378,AR330379

Known compatible models

  • ARRMA 1/8 Kraton 6S-106005/106015/106018
  • ARRMA 1/8 Outcast 6S BLX Stunt Truck Brushless-ARA8710
  • ARRMA 1/8 4WD Electric Talion 6S BLX-ARA106048
  • ARRMA 1/8 Kraton 6S BLX 4WD Brushless Speed Monster Truck-ARA106040
  • ARRMA 1/8 4WD Typhon 6S Blx Brushless Buggy-ARA106046
  • ARRMA 1/8 Notorious 6S BLX 4Wd Brushless Classic Stunt Truck-ARA106044
  • ARRMA 1/8 Outcast 6S BLX 4Wd Brushless Stunt Truck RTR-ARA106060
  • ARRMA 1/7 Infraction All-Road Street Bash 6S BLX-ARA109001
  • ARRMA 1/7 Limitless All-Road Speed Bash-ARA109011
  • ARRMA 1/7 Mojave 6S BLX Desert Truck-ARA106058
  • ARRMA 1/7 Infraction 6S BLX V2 All-Road Truck-ARA7615V2
  • ARRMA 1/8 4WD Kraton Extreme Bash Roller Speed Monster Truck-ARA106053
  • ARRMA 1/7 Fireteam Tactical Unit 6S BLX-ARA7618
  • ARRMA 1/7 Limitless V2 Speed Bash Roller-ARA7116V2
  • ARRMA 1/8 Kraton 6S V5 4WD BLX Speed Monster Truck-ARA8608V5
  • ARRMA 1/8 Notorious 6S V5 4WD Blx Stunt Truck-ARA8611V5
  • ARRMA 1/7 Mojave 4WD Extreme Bash Roller Desert Truck-ARA7204
  • ARRMA 1/7 Big Rock 6S 4X4 BLX Monster Truck RTR-ARA7612
  • ARRMA 1/8 Kraton 6S BLX 4X4 Extreme Bash Speed Monster Truck RTR-ARA8708
  • ARRMA 1/8 Kraton 6S EXB 4X4 RTR Brushless Speed Truck-ARA8708V6
  • ARRMA 1/8 Notorious 6S V6 4X4 BLX Brushless Stunt Truck RTR-ARA8611V6
  • ARRMA 1/7 Felony 6S BLX Street Bash All-Road Muscle Car RTR-ARA7617V2
  • ARRMA 1/7 Mojave 6S V2 4WD BLX Desert Truck-ARA7604V2
  • ARRMA 1/8 Outcast 6S BLX 4WD Brushless Stunt Truck-ARA106042
  • ARRMA 1/8 Talion 6S BLX 4WD Extreme Bash Speed Truggy RTR-ARA8707
  • ARRMA 1/8 Typhon 6S V5 4WD BLX Buggy-ARA8606V5
  • ARRMA 1/7 Limitless 8S AVC 4X4 RTR Brushless Street Speed-ARA7816
  • ARRMA 1/8 Kraton 6S 4X4 BLX Brushless Speed Monster Truck RTR-ARA8608V6

As a direct replacement, this mount is intended to improve hinge fit and pivot stability on ARRMA 1/7 and 1/8 models; check fit and run a quick setup routine after fitting to confirm suspension geometry.

Will this mount extend front-end durability?

Yes. The 7075-T6 material and brass hinge interfaces shift wear away from softer plastics, improving long-term durability under heavy use.

How do the brass inserts contribute to service life?

Brass inserts provide a firm seating surface for hinge pins, limiting clearance growth and localised wear compared with plain plastic mounts.

What inspection schedule is recommended?

Inspect hinge-pin fit and fastener torque after the first few runs, then include a quick check in routine maintenance; replace inserts if visible wear appears.

Will this part survive frequent bashing?

The alloy and insert combination improves resistance to impact and abrasion, but severe impacts may still damage connected suspension components; use standard bash-care practices.
