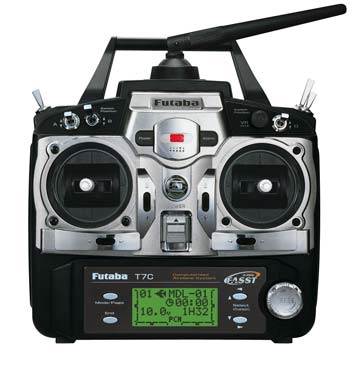

Futaba 7CH_C1 7-Channel 2.4GHz Transmitter with R617FS Receiver  [7CH_C1]

Futaba 7CH 7-Channel (M1) 2.4GHz/ R617FS
Price:
NZD$481.96
Brand:
Futaba
Model:
7CH_C1
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Accurate stick feel and reliable 2.4GHz link for the Futaba 7CH_C1

The Futaba 7CH_C1 delivers seven-channel control aimed at pilots who fly both aeroplanes and helicopters. The 2.4GHz FASST protocol keeps signal integrity high, reducing the chance of interference during flight sessions.

Easy Dial 'n Key menu with readable display

Navigation is simple thanks to the Dial 'n Key layout and a generous LCD screen with contrast adjustment. The transmitter can store ten models and lets you assign up to six characters to each model name for quick identification.

Extensive trims and rate control

Features include digital trims with memory, throttle cut adjustments and reversing on every channel. Dual and triple rate options and exponential control for aileron, elevator and rudder let you tailor handling to different aircraft and pilot preferences.

Rotorcraft functions and mixing

Dedicated helicopter menus include governor selection, throttle and pitch curve programming and swashplate configuration. Programmable mixes and gyro mixing options help dial in stable tail and cyclic response.

Specifications

  • Operating System: 2-stick, 7 channels
  • Power Supply: 9.6V NT8S600B Ni-Cd battery
  • Current Drain: 250 mA
  • Receiver Size: 41.6 x 27.5 x 9.2 mm
  • Receiver Power Requirement: 4.8 - 6V
  • Receiver Current Drain: 80mA (at no signal)
  • Weight: 0.34oz (9.8g) with case, 0.25oz (7g) without case

A dependable choice for flyers who need flexible programming and helicopter-specific features in a compact 7-channel package.

Yes. The transmitter supports dual and triple rates plus expo so you can create separate control profiles for slower trainer aircraft and more responsive sport models.
The LCD includes contrast adjustment which helps visibility in stronger light, but using a sunshade or angling the radio will improve readability outdoors.
The menu provides throttle and pitch curve editing plus swashplate setup and governor select, enabling detailed tuning of rotor behaviour for different models.
