Yokomo B8-413GH1 Hard Front Hub Carrier for BD8  [B8-413GH1]

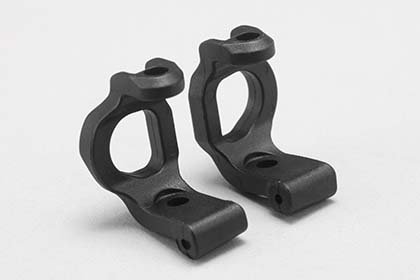

Yokomo B8-413GH1 Hard front steering hub carrier (-1mm/Graphite molded) for BD8
Price:
NZD$8.24
Brand:
Yokomo
Model:
B8-413GH1
GTIN:
3888
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

Front Hub Carrier: Key Points

This front steering hub carrier is a hard-type component containing graphite and is intended as a standard replacement for BD8 2018. By relocating the kingpin axis 1mm closer to the chassis, the part changes scrub radius and tread when combined with wheel hubs of differing thickness.

Material and form: graphite-molded hard resin offers a firmer feel than softer blends, contributing to a snappier steering response and improved high-speed stability while maintaining the same mounting interfaces on compatible chassis.

Tuning role: using this -1mm carrier with various wheel hub thicknesses enables incremental steering-geometry tweaks so you can tune turn-in and mid-corner balance for precise on-road handling.

Compatibility

Supported chassis: BD8 2018, MRTC-BD818, MRTC-BD818A.
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

What is the basic installation procedure for this carrier?

Remove the existing hub carrier, check the kingpin and suspension arm alignment, install the -1mm carrier in the same mounting location, and reassemble using the original hardware. Confirm steering geometry after installation.

Do I need different wheel hubs to see the effect?

Yes. The change in scrub radius depends on hub thickness; pairing the carrier with thinner or thicker hubs produces different track and steering responses, so choose hubs to achieve your desired handling.

Are special tools required to fit it?

No special tools are needed beyond standard RC maintenance gear: hex drivers, a small wrench, and thread locker if you prefer. Check fastener torque and steering freeplay after fitting.
