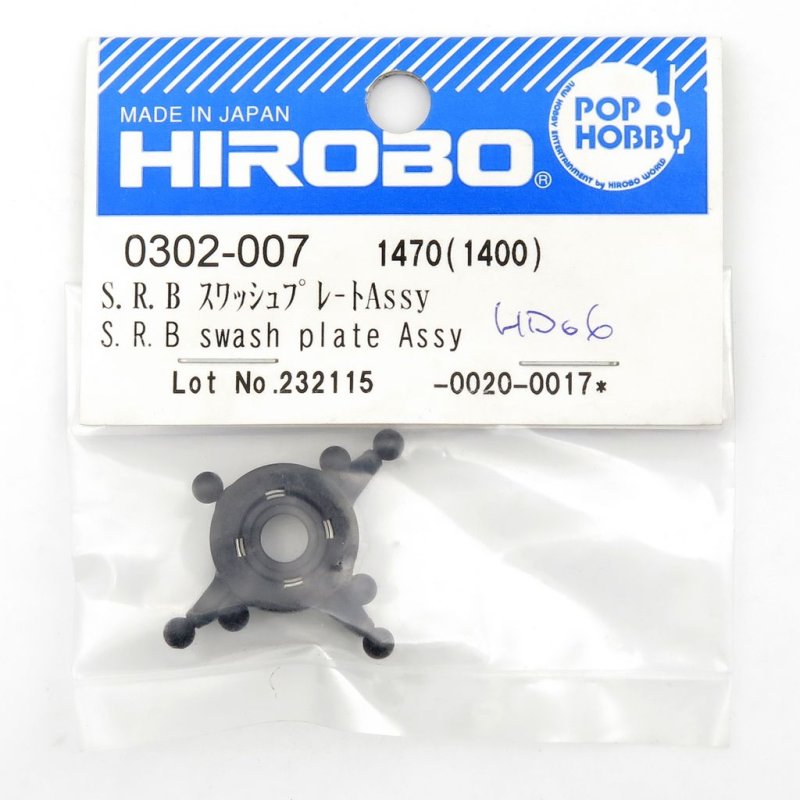

Hirobo HI0302007 SRB Swash Plate - for SRB helicopter cyclic control  [HI0302007]

Understanding fit and function of the SRB swash plate

The Hirobo HI0302007 is a machined swash plate assembly intended for SRB series RC helicopters, providing the mechanical interface between servos and rotor blades. The notes below outline its operational role, what to inspect when fitting a replacement, and primary tuning relationships with control linkages and servos.

This swash plate transmits servo movements into collective and cyclic blade pitch adjustments. During fitment, confirm the swash runs true to the main rotor hub, check for full unimpeded travel, and ensure ball links and control rods are seated properly to prevent binding. Apply small incremental link changes when establishing neutral cyclic and the correct collective travel.

Maintenance checks should include inspection of bearing seats and ball link surfaces, swapping out worn bearings or links, and verifying fastener torque per the helicopter's maintenance guide. Intended solely as an RC helicopter accessory component.
