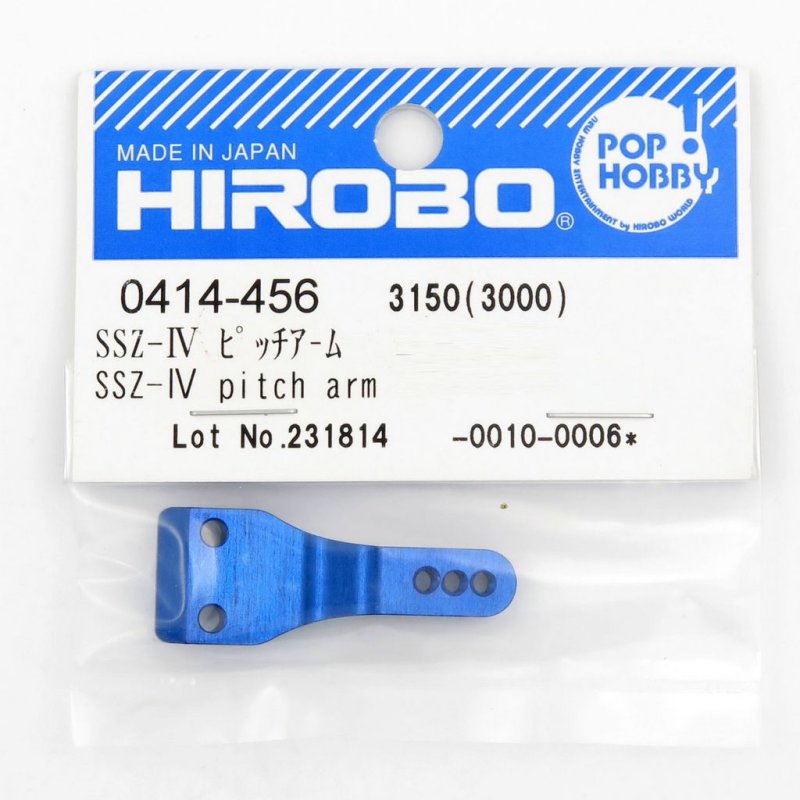

Hirobo SSZ-IV Precision Pitch Arm HI0414456 - Replacement Link  [HI0414456]

Role of the SSZ-IV Pitch Arm

This Hirobo SSZ-IV pitch arm (model HI0414456) functions as a replacement linkage for SSZ-IV pitch assemblies on compatible Hirobo helicopters. The description below focuses on what the part does, practical fitment advice, and its place in setup and tuning workflows while avoiding claims beyond the SSZ-IV designation.

Purpose: the arm transmits servo movement from the swashplate and associated linkages to the rotor head, converting control inputs into blade pitch adjustments. During inspections look for any bend, loose fasteners, or play at ball joints that could undermine control precision.

Fitment guidance: install the arm according to the SSZ-IV pitch assembly layout in the helicopter service manual, tighten fixings to the advised torque, and double check linkage geometry prior to flight. After fitting, set servo trims and swashplate centre to ensure neutral positions are correct.

Impact on tuning: as a structural linkage, the arm supports consistent control feel by maintaining alignment and minimizing slop. When changing cyclic or collective gains, make sure the arm and its connections are free of binding and that ball ends sit securely to prevent misleading adjustments.

Keep this item as a service spare for SSZ-IV pitch assemblies and inspect connections regularly to maintain accurate control response.
