Seaking 160A V4 ESC by Hobbywing 30206200 - Waterproof ESC for RC boats  [HW-30206200]

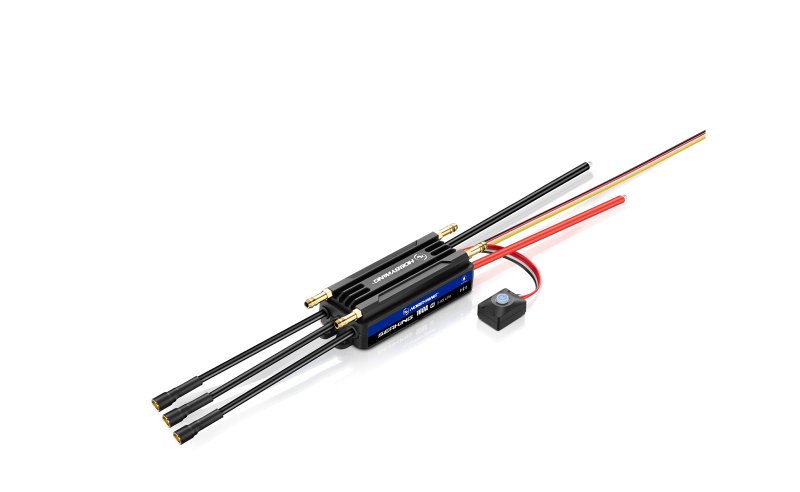

HOBBYWING 30206200 - Seaking 160A V4 Brushless Electronic Speed Controller
Price:
NZD$234.11
Brand:
Hobbywing
Model:
HW-30206200
GTIN:
6938994403191
Condition:
Brand New
Available in warehouse
Write a review

Hobbywing 30206200 - Seaking 160A V4 ESC Built for Water Performance

The Hobbywing 30206200 - Seaking 160A V4 is a brushless ESC engineered for RC boat enthusiasts who need robust, waterproof power control. Compatible with up to 8S LiPo batteries, it offers stable throttle response and reliable sensorless control for on-water running.

Control and Configurability for Marine Use

Rated at 160A continuous with an 800A peak burst, this ESC is matched to boats up to 120CM. Variable BEC outputs (6V/7.4V/8.4V at 8A) let you power servos and receivers appropriately, and integrated Bluetooth support helps with programming and data review.

Specifications

  • Cont./Peak Current: 160A/800A
  • Input Voltage: 3-8S LiPo
  • BEC Output: 6V/7.4V/8.4V @8A
  • Waterproof: Yes
  • Size: 91×41×25.5mm
  • Weight: 220g (Including wire and output plug)
  • Applications: Suitable for boats up to 120CM

For club racers and hobby sailors wanting dependable, water-ready electronics, the Seaking 160A V4 provides a durable, programmable platform for high-current setups.

Is the ESC fully sealed against splashes and brief immersion?

Yes, the Seaking V4 is designed as waterproof for normal boating conditions, but seals should be inspected periodically and connectors kept dry when possible.

Can I use this ESC with a high KV brushless motor?

Yes, it supports a wide range of brushless motors provided the motor and prop draw stays within the 160A continuous limit and the battery voltage is within 3-8S LiPo range.

What are the best practices for mounting the ESC in a hull?

Mount on a flat, ventilated area if possible, secure wiring to reduce strain, keep the Bluetooth port accessible for programming, and avoid placing heavy components directly over the unit.
