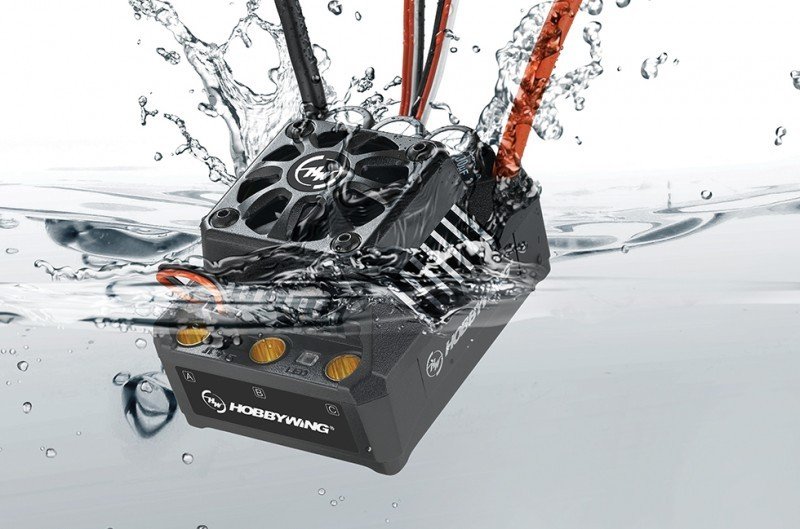

HOBBYWING EzRun MAX6 - 30105000  [HW-30105000]

Tall Reliability & Durability

Built many packed in tough and top-quality elements and alongside
cutting-edge firmware, the EZRUN MAX6 can deliver unmatched power
and satisfaction perhaps the numerous hardcore of rushing applications, it is also
responsive sufficient to shield it self from harm considering overloading due to real
punishment, overuse and/or individuals error.

Great Flexibility & Versatility

With amazing acceleration abilities and a rock-solid, stable
production, the MAX6 are designed for instant full-torque start-ups for
wheelies, high-speed rushing on straightaways and powering
through bumpiest surface. Someone might have your choice of
adjusting the ESC parameters prior to their option and ability.

Highly relevant to All Weather Conditions

The waterproof and dust-proof design allows the MAX6 become present numerous environment
conditions without dilemma of harm caused on ESC from water or dirt.

High Voltage integrated BEC

The MAX6 has utilized the world’s very first HV integral BEC with a manufacturing present totally to 25Amp and a switchable production voltage of
6V-7.4V. The high voltage BEC is designed to handle today’s high
voltage servos on need used by major vehicles.

Advanced and Secure
Electronic Switch

The MAX6 features a power digital switch with a lifespan of over
50000 on/off rounds, housed in a totally waterproof,
dust-proof and shock-resistant design.

Regular Firmware Updates
without Charge

You can upgrade the MAX6 utilising the Hobbywing USB
LINK software, a multifunction LCD system field and a laptop computer.
Hobbywing updates its ESC firmware often providing you
upgraded features more regularly whenever available.

Included Anti-Spark System

The MAX6 is established with interior anti-spark circuitry that protects not just electric batteries connectors
from harm but aids in preventing genuine damage because of burnt fingers from unavoidable
dilemma of sparking whenever establishing the ESC to raised voltage battery pack packages (5S/6S/7S/8S).

Level of Applications

MAX6 Applications:
This ESC is relevant to various 1/6^th & 1/7^th scale cars such as the Traxxas XO-1, including
suitable to different 1/8^th scale hefty vehicles including the CEN GST-E. It's your very best selection for
high-end aggressively driven builds.

Product Specification

Type

• Scale : 1/6^th、1/7^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 160A/1050A
• Input : 3-8S LiPo/9-24 Cells NiMH
• BEC production : modification Mode:6V/7.4V,6A

Wires & Connectors

• Input Wires : Red-10AWG-200mm*1/Black-10AWG-200mm*1
• Output cables : Black-10AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 6.5mm Famale silver Connectors (pre-soldered concerning the PCB)

Fan

• Size : 35.0x35.0x10.0mm
• Voltage Amount : 5-7.4V
• Powered by : Powered by BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x56.0x46.5mm
• Weight : 240g

Applications

• Motors : SL BL Motors/SD BL Motors(just in SL mode)
• Vehicles : 1/6^th、1/7^th Touring Car/Buggy/Truck
• KV Rating/T Count : 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)
