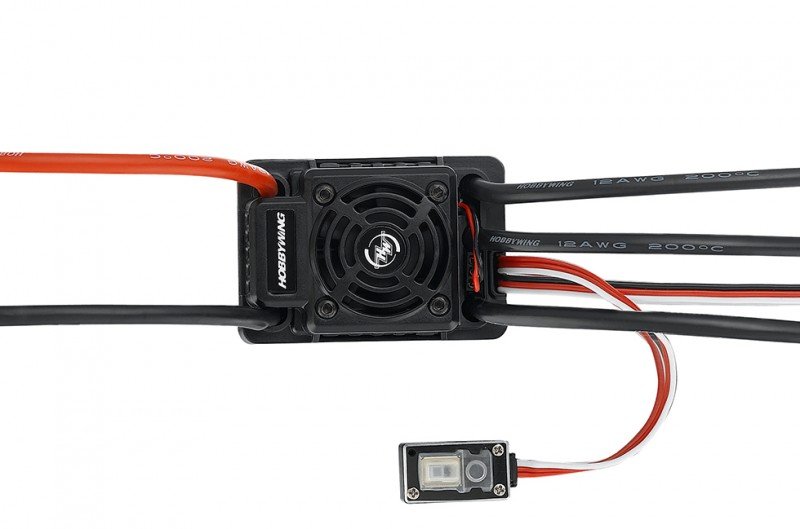

EzRun WP SC8 - 81010400 - HOBBYWING  [HW-81010400]

Tall Reliability & Durability

Reliable equipment with higher-level software technology enables
the EZRUN WP-SC8 to never just provide high energy manufacturing as well as
overload security of ESC circuit.

Highly relevant to any or all Weather Conditions

The waterproof and dust-proof design enables the MAX10 become used in just about any climate
without problem of damage triggered on ESC from water or dirt.

Great Flexibility & Versatility

With the strong torque and excellent manufacturing, the EZRUN WP-SC8 can
positively attract the capability hungry needs that expert motorists require.
The severely adjustable parameters of ESC enables motorists to have enjoyment from
smooth throttle effect as soon as the throttle/brake
linearity is utmost needed.

Integrated BEC

The integral switch mode BEC with a maximum production of 6Amp and voltage
of 6V fully grasp this ESC ideal for various servos.

Effective Cooling System

Hobbywing patented heat-conductive copper club address regarding power board of
the EZRUN WP SC8,which can efficiently and effortlessly get temperature
towards included CNC machined billet aluminum heat sink housing,
with reticulate heatsink and superior cooling fan can keep your ESC
as cool as you are able to.

Ways of ESC Programming

Multiple selections for ESC development supported:
fundamental settings via SET key concerning the ESC,
advanced level settings via Light-emitting Diode system box/multifunction LCD system field
& Hobbywing USB LINK software.

Regular Firmware Updates
----Free of Charge

You can update the EZRUN WP SC8
aided by the Hobbywing USB LINK pc software,
a multifunction LCD system industry and a mobile computer.
Hobbywing updates its ESC firmware often giving you
upgraded features with greater regularity whenever available.

Item Specification

Type

• Scale : 1/10^th、1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Current : 120A/760A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC production : modification Mode:6V/3A

Wires & Connectors

• Input cables : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Amount : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 59.0x38.0x34.0mm
• Weight : 113g
