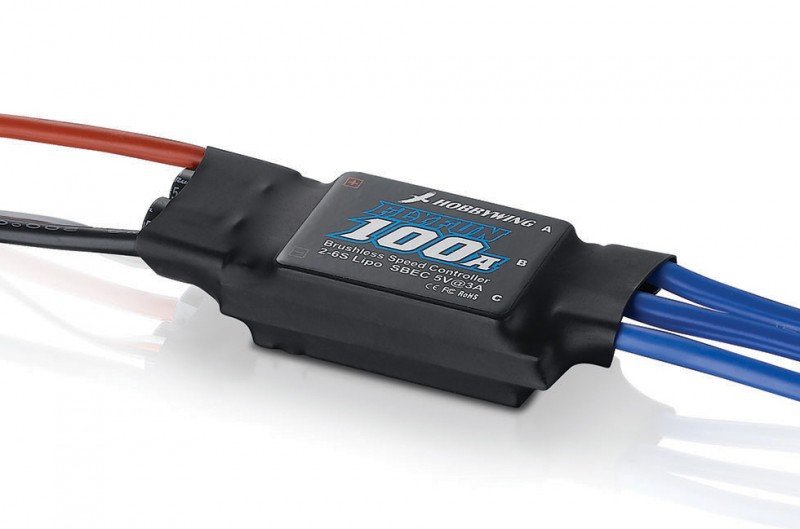

FlyFun 100A OPTO V4 - 80020660 - HOBBYWING  [HW-80020660]

Great Performance

Imported elements and PCB (printed circuit
board) with extremely low impedance employed by FlyFun ESCs gurantee
great present stamina, good performance and high reliability.

Programmale Parameters

With a rich group of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is relevant to various aircraft (like fixed-wing,
heli, multirotor and etc.)

A couple of Protections

Multiple protection features contain abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff efficiently prolongs the perfect solution is life associated with ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 100A/120A
• Input : 2-6S LiPo
• BEC production : No
• Output cables : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 83.0x31.0x14.0mm
• Weight : 73g
