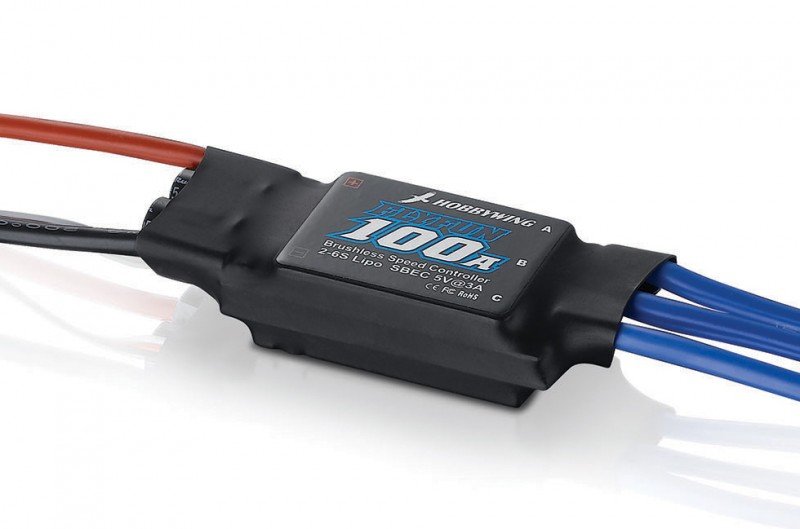

FlyFun 100A V4 - 80020650 - HOBBYWING  [HW-80020650]

Great Performance

Imported elements even though the PCB (printed circuit
board) with acutely low impedance employed by FlyFun ESCs gurantee
great present endurance, good performance and high reliability.

Programmale Parameters

With a rich pair of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does apply to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple protection features include abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff effectively prolongs the answer life linked to the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Current : 100A/120A
• Input : 2-6S LiPo
• BEC manufacturing : Linear mode:5V,3A
• Output cables : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : not Supported
• LCD Program Box : not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 83.0x31.0x16.0mm
• Weight : 76g
