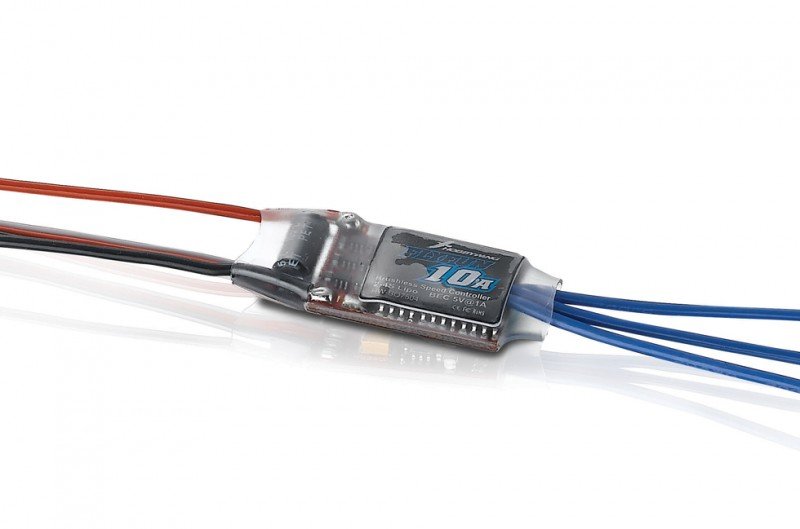

FlyFun 10A V4 - 80020580 - HOBBYWING  [HW-80020580]

Great Performance

Imported elements additionally the PCB (printed circuit
board) with exceptionally low impedance used by FlyFun ESCs gurantee
great current endurance, good performance and high reliability.

Programmale Parameters

With a rich few programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is pertinent to various aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple security features have abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff effectively prolongs the perfect solution is life the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 10A/12A
• Input : 2-4S LiPo
• BEC production : Linear mode:5V,1A
• Output cables : Blue-20AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 38.0x18.0x6.0mm
• Weight : 10g
