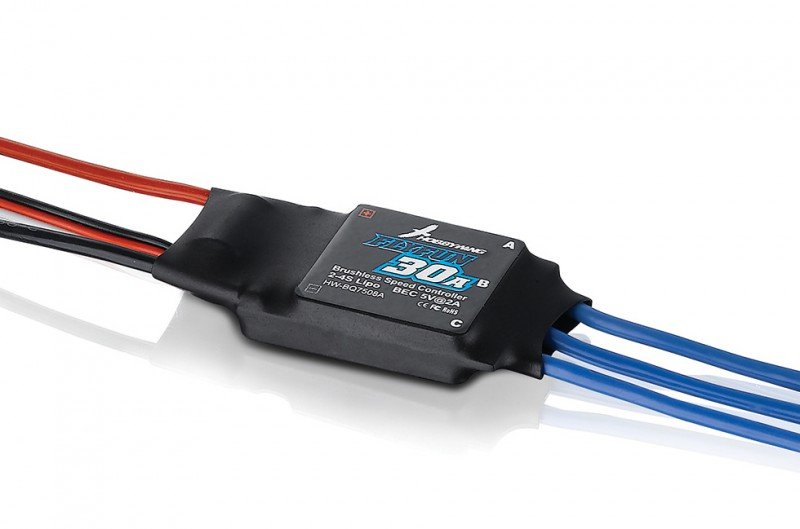

FlyFun 30A V4 - 80020610 - HOBBYWING  [HW-80020610]

Great Performance

Imported elements whilst the PCB (printed circuit
board) with exceptionally low impedance adopted by FlyFun ESCs gurantee
great present stamina, good performance and high reliability.

Programmale Parameters

With a rich couple of programmable parameters (via a LED system
card/box), FlyFun ESC does relate to different aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle indicator loss (or Fail secure), and low voltage
cutoff effectively prolongs the clear answer life regarding the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 30A/40A
• Input : 2-4S LiPo
• BEC production : Linear mode:5V,2A
• Output cables : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : not Supported
• LCD Program Box : maybe not Supported
• WiFi Module : perhaps not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 55.0x25.0x9.0mm
• Weight : 26g
