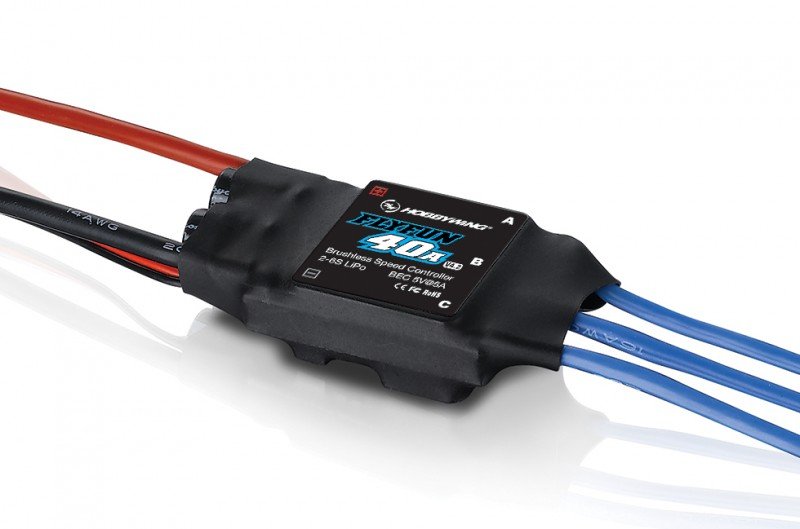

FlyFun 40A OPTO V4 - 80020622 - HOBBYWING  [HW-80020622]

Great Performance

Imported elements while the PCB (printed circuit
board) with incredibly low impedance employed by FlyFun ESCs gurantee
great current stamina, good performance and high dependability.

Programmale Parameters

With a rich set of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is applicable to different aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple safety features contain abnomal input
voltage, ESC thermal, throttle signal loss (or Fail secure), and low voltage
cutoff effectively prolongs an ideal solution is life the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 40A/55A
• Input : 2-6S LiPo
• BEC production : No
• Output Wires : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 60.0x28.0x12.0mm
• Weight : 35g
