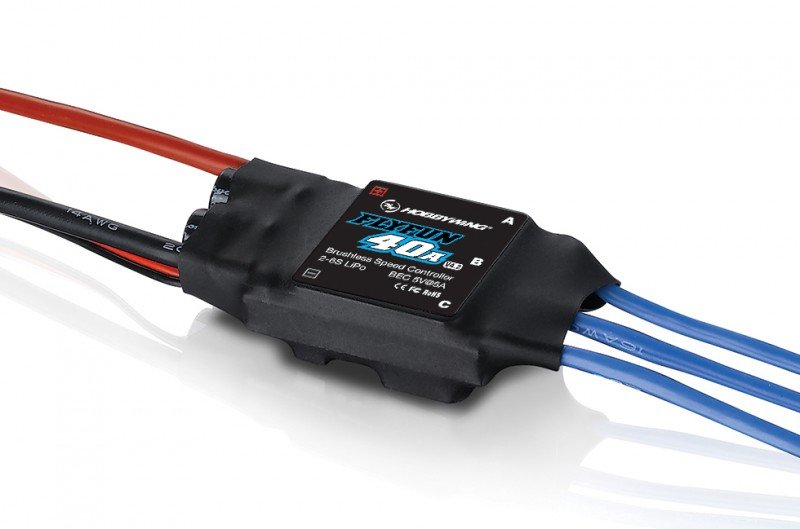

FlyFun 40A V4.2 - 30214000 - HOBBYWING  [HW-30214000]

Great Performance

Imported elements which means that PCB (printed circuit
board) with exceedingly low impedance employed by FlyFun ESCs gurantee
great current stamina, good performance and high dependability.

Programmale Parameters

With a rich musical organization of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is relevant to different aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple security features include abnomal input
voltage, ESC thermal, throttle indicator loss (or Fail secure), and low voltage
cutoff effectively prolongs the solution life associated with ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 40A/55A
• Input : 2-6S LiPo
• BEC manufacturing : Linear mode:5V,3A
• Output cables : Blue-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : not Supported
• LCD Program Box : not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 60.0x28.0x15.0mm
• Weight : 39g
