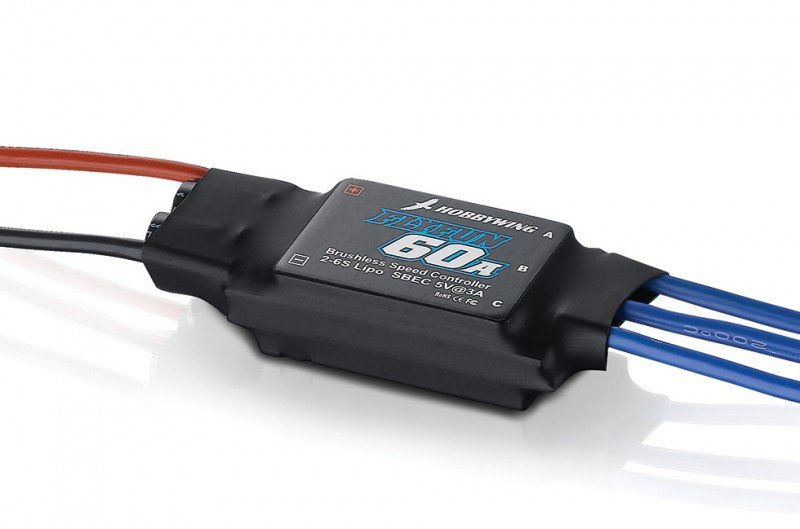

FlyFun 60A OPTO V4 - 80020632 - HOBBYWING  [HW-80020632]

Great Performance

Imported elements plus the PCB (printed circuit
board) with extremely low impedance utilized by FlyFun ESCs gurantee
great current stamina, good performance and high dependability.

Programmale Parameters

With a rich set of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is relevant to various aircraft (like fixed-wing,
heli, multirotor and etc.)

A couple of Protections

Multiple security features consist of abnomal input
voltage, ESC thermal, throttle indication loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the solution life regarding the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 60A/80A
• Input : 2-6S LiPo
• BEC manufacturing : No
• Output cables : Blue-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 83.0x31.0x14.0mm
• Weight : 60g
