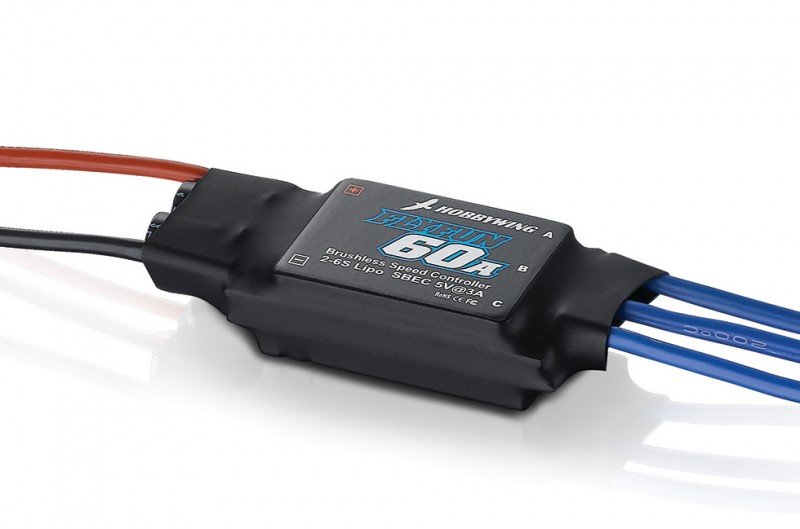

FlyFun 60A V4 - 80020630 - HOBBYWING  [HW-80020630]

Great Performance

Imported elements additionally the PCB (printed circuit
board) with extremely low impedance utilized by FlyFun ESCs gurantee
great present endurance, good performance and high dependability.

Programmale Parameters

With a rich pair of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC is pertinent to various aircraft (like fixed-wing,
heli, multirotor and etc.)

Several Protections

Multiple protection features have abnomal input
voltage, ESC thermal, throttle sign loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the solution life for the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 60A/80A
• Input : 2-6S LiPo
• BEC manufacturing : Linear mode:5V,3A
• Output cables : Blue-14AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0 silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 83.0x31.0x16.0mm
• Weight : 63g
