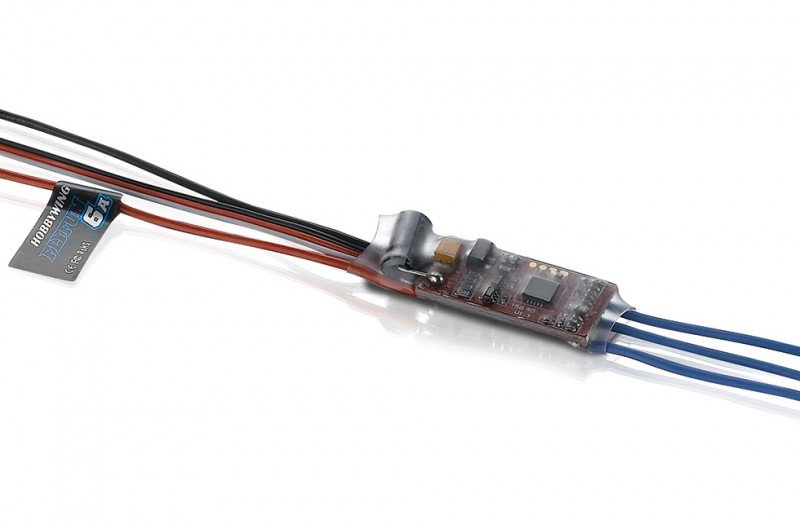

FlyFun 6A V4 - 80020570 - HOBBYWING  [HW-80020570]

Great Performance

Imported elements thin PCB (printed circuit
board) with acutely low impedance utilized by FlyFun ESCs gurantee
great present stamina, good performance and high dependability.

Programmale Parameters

With a rich number of programmable parameters (via a Light-emitting Diode system
card/box), FlyFun ESC does affect various aircraft (like fixed-wing,
heli, multirotor and etc.)

A few Protections

Multiple security features consist of abnomal input
voltage, ESC thermal, throttle indicator loss (or Fail secure), and low voltage
cutoff effortlessly prolongs the clear answer life about the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 6A/8A
• Input : 2S LiPo
• BEC production : Linear mode:5V,0.8A
• Output Cables : Blue-22AWG-40mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : not Supported
• WiFi Module : maybe not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 32.0x12.0x4.5mm
• Weight : 6g
