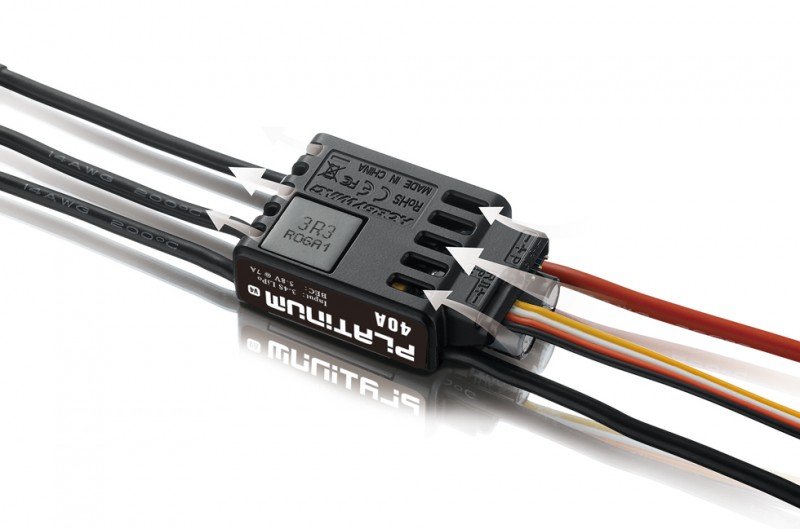

Hobbywing item HW-30204200 - Platinum 25A V4 & Platinum 40A V4 30204200 Aircraft ESC / BEC Motor / ESC / Cooling Fan
Excellent engine Governing Speed
High-performance 32-bit processor with a running regularity of 72MHz
along with higher-level algorithm optimizes the rate governing.
Alongside the adjustable governor parameters guarantees every
pilot a precise control experience
Tall Voltage incorporated BEC
The integral switch mode BEC with an adjustable voltage (6V/7.4V the Platinum
25A V4, 5V~8V using the action of 0.1V for the Platinum 40A V4), a regular up-to-date
of over 3A/7A (3A for the Platinum 25A V4, 7A the Platinum 40A V4) and a high
present of 7A/18A (7A the Platinum 25A V4, 18A the Platinum 40A V4) can
supply adequate power the servos to work effectively.
DEO Technology
The DEO (Driving effectiveness Optimization, or more called "Active Freewheeling")
technology used inside ESC features its own benefits.
● faster a reaction towards throttle modification.
● greater driving effectiveness, considerably longer trip time.
● Lower ESC temperature and a much more dependable procedure.
Reverse Brake
With the contrary Brake mode enabled whenever landing can efficiently
reduce the sliding distance of fixed-wing aircraft to simulate the
landing of a genuine aircraft (within a brilliant brief distance). The traditional
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
in addition available; the stopping system quantity is adjustable in normal braking system mode
whilst in proportional braking system mode, the stopping system force would be straight away
allotted based on the place of radio throttle stick.
Some Protections
Multiple security features consist of, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle indicator loss
(or Fail secure), and low voltage cutoff effectively
prolongs the answer life from the ESC.
Other Features
A split development slot to own in touch the programmer with this particular ESC allows specific to
● Program ESC,
● check flight information have minimal voltage, optimum temperature, standardized RPM
and price curve (in Heli Governing shop mode) concerning the journey information recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD system industry or a Wi-Fi Module & our
Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 25A/40A
- Input : 3-6S Lipo
- BEC production : change Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output cables : Black-18AWG-100mm*3
- Input Connectors : No
- Output Connecotors : 3.5mmGold Connectors (Female)
ESC Programing via
- Transmitter : maybe not Supported
- LED Program Card : not Supported
- LED Program Box : maybe not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : specific system Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 47x22x10mm
- Weight : 27g
