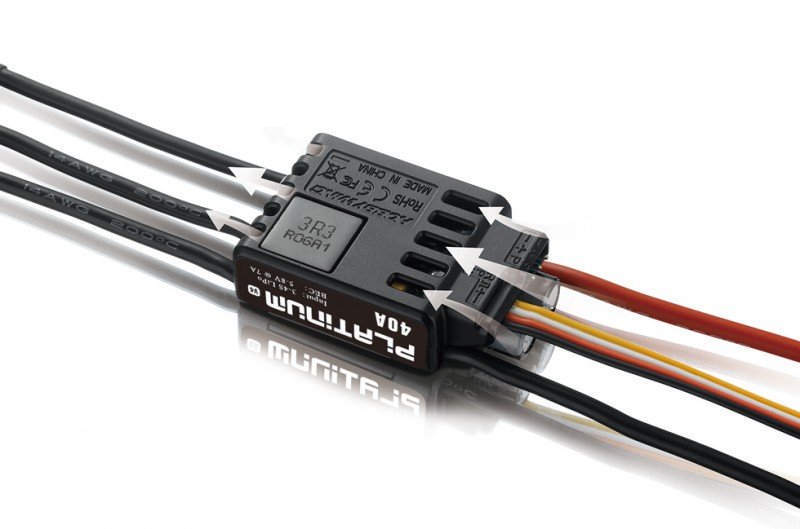

Hobbywing item HW-30215001 - Platinum 25A V4 & Platinum 40A V4 30215001 Aircraft ESC / BEC Motor / ESC / Cooling Fan
Excellent engine Governing Speed
High-performance 32-bit processor with a running regularity of 72MHz
and advanced level algorithm optimizes the speed governing.
Together with the adjustable governor parameters guarantees every
pilot an exact control experience
High Voltage included BEC
The integral switch mode BEC with a variable voltage (6V/7.4V the Platinum
25A V4, 5V~8V with the step of 0.1V the Platinum 40A V4), a regular present
of over 3A/7A (3A the Platinum 25A V4, 7A the Platinum 40A V4) and a leading
present of 7A/18A (7A the Platinum 25A V4, 18A the Platinum 40A V4) can
offer sufficient energy the servos to work effectively.
DEO Technology
The DEO (Driving effectiveness Optimization, pretty much called "Active Freewheeling")
technology implemented to the ESC has its own advantages.
● Quicker a reaction to the throttle modification.
● greater driving effectiveness, much longer journey time.
● Lower ESC heat and a more dependable procedure.
Reverse Brake
With the Reverse Brake mode enabled whenever landing can efficiently
lessen the sliding distance regarding fixed-wing aircraft to simulate the
landing of a genuine aircraft (within an excellent brief distance). The traditional
Brake Mode, Proportional Brake mode, and Brake Disabled mode are
in addition available; the stopping system amount is adjustable in normal braking system mode
during proportional braking system mode, the stopping system force are automatically
allotted on the basis of the host to radio throttle stick.
Some Protections
Multiple safety features include, ESC thermal,
capacitor thermal (HOBBYWING-patented
technology), ESC overload, throttle indicator loss
(or Fail secure), and low voltage cutoff efficiently
prolongs the clear answer life the ESC.
Other Features
A split development port to possess in touch the programmer using this ESC permits user to
● Program ESC,
● check journey information include minimal voltage, optimum temperature, standardized RPM
and price curve (in Heli Governing shop mode) regarding journey information recorded by the ESC,
● Upgrade ESC firmware With a multifunction LCD program package or a Wi-Fi Module & our
Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 25A/40A
- Input : 3-6S Lipo
- BEC manufacturing : change Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
- Output cables : Black-18AWG-100mm*3
- Input Connectors : No
- Output Connecotors : 3.5mmGold Connectors (Female)
ESC Programing via
- Transmitter : not Supported
- LED Program Card : not Supported
- LED Program Box : perhaps not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Separate Program Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 47x22x10mm
- Weight : 27g
