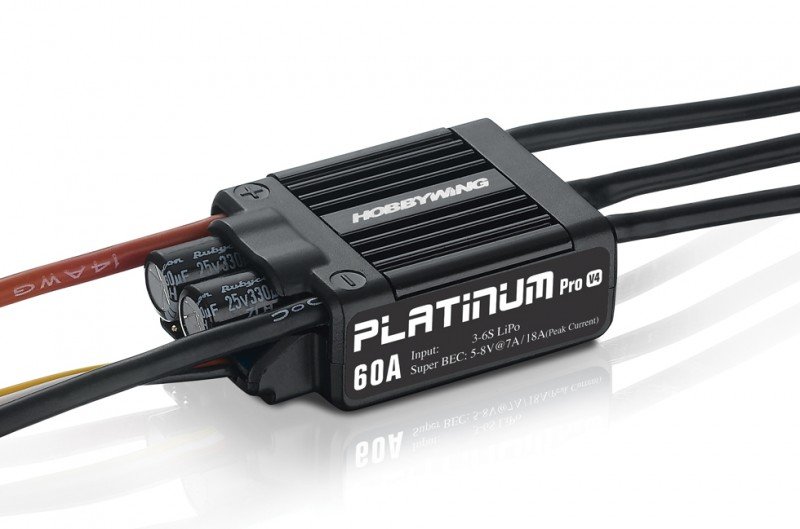

Hobbywing item HW-30215100 - Platinum 60A V4 30215100 Aircraft ESC / BEC Motor / ESC / Cooling Fan
Exemplary motor Governing Speed
High-performance 32-bit processor with an operating regularity of 72MHz
along with high level algorithm optimizes the cost governing.
Alongside the adjustable governor parameters guarantees every
pilot a precise control experience.
Tall Voltage integrated BEC
The incorporated switch mode BEC with a variable voltage address anything from 5V to 8V,
a frequent present of over 7A and top present of 18A may provide enough
energy the servos to utilize effortlessly.
Four Brake Modes
This Platinum 60A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four stopping system modes. The braking system volume is adjustable in
normal brake mode; in proportional braking system mode, the stopping system force will more than likely to be
immediately allocated on the basis of the location the radio throttle stick; backwards
stopping system mode, the motor rotation could be changed via a supplementary transmitter channel.
A few Protections
Multiple safety features have, ESC thermal, capacitor thermal
(HOBBYWING-patented technology), ESC overload, throttle sign loss (or Fail secure),
and low voltage cutoff efficiently prolongs the right option would be life associated with ESC.
Other Features
A split development slot to possess connected the programmer using this ESC allows certain to
● Program ESC,
● Check journey information include minimum voltage, maximum heat, standardized RPM and
price bend (in Heli Governing shop mode) regarding the journey information recorded by the ESC,
● Upgrade ESC firmware with a multifunction LCD system industry or a Wi-Fi Module & our Apple/Android phone App.
Product Specification
Type
- Brushed/Brushless : BL
- High Voltage/Regular : Regular
Specifications
- Cont./Peak Present : 60A/80A
- Input Voltage : 3-6S LiPo
- BEC manufacturing : Switch Mode:5-8V,7A
Wires & Connectors
- Input cables : Red-14AWG-100mm*1/Black-14AWG-100mm*1
- Output Wires : Black-14AWG-75mm*3
- Input Connectors : No
- Output Connecotors : 3.5mm silver Connectors (Female)
ESC Programing via
- Transmitter : perhaps not Supported
- LED Program Card : not Supported
- LED Program Box : Not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : Program/Throttle Wire
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 48.0x30.0x15.5mm
- Weight : 49g
Applications
- 450-480 Program Heli (Principal Blade: 325-360mm）
