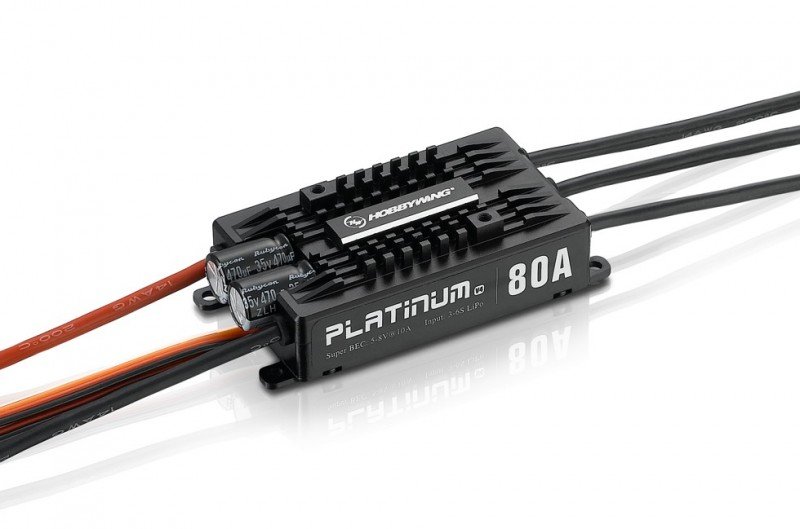

Platinum 80A V4 - 30203200 - HOBBYWING  [HW-30203200]

Super smooth Start-up

Platinum V4 serial things permits the engine to start with acutely smooth
and stops tail-drift conditions that helicopters experience. The start-up time
is adjustable from 8 to 25 moments, this might positively create an incredible
start point for each journey.

Exemplary engine Speed Governing

High-performance 32-bit processor with a prossesing regularity of 72MHz together with
high rate algorithm optimizes the price governing. Utilizing the adjustable governor
parameters it will guarantee every pilot an exact and efficient control experience.

Other Features

A split system slot helping you to connect programmer using this type of ESC permits person to
● Program ESC,
● always check journey information consist of minimal voltage, maximum temperature, standardized RPM and
cost fold (in Heli Governing shop mode) of trip parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD system package or a WiFi Module & our
Apple/Android phone App.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four stopping system modes. The stopping system amount is adjustable in
normal braking system mode; in proportional braking system mode, the braking system force could be
instantly selected in line with the place of radio throttle stick; backwards
stopping system mode, the engine rotation are changed via an extra transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 80A/100A
• Input Voltage : 3-6S LiPo
• BEC manufacturing : modification Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : specific system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 84.3x38.2x20.4mm
• Weight : 97g
