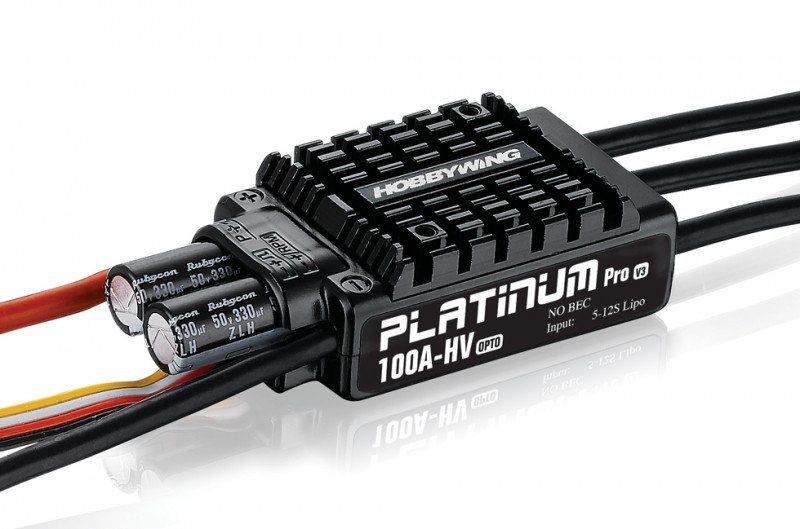

Platinum HV 100A OPTO V3 - 30203600 - HOBBYWING  [HW-30203600]

Great energy Output

This Platinum HV 100A OPTO V3 ESC can output a frequent present
of 100A and top present totally to 140A.

New Design & excellent Performance

New framework design along with superior micro-processor guarantees
users efficient temperature dissipation, good compatibility (with various devices),
high driving effectiveness, and etc.

High-voltage Battery Packs Supported

This HV 100A OPTO V3 ESC is supposed the task of 6-12S LiPo battery pack packages.

Four Flight Modes & “Auto Restart” Function

This ESC featuring “Fixed-wing/Helicopter (Linear Throttle)/Helicopter
(Elf Governor)/Helicopter (store Governor)” four journey modes and “Auto
Restart (Time)” function guarantees users exemplary speed-governing
performance in Heli Governor mode and permits users to cutoff production and restart
engine for avoiding feasible crash triggered
by bad procedure.

Some Protections

Multiple safety features include unusual input voltage, ESC thermal,
throttle signal loss (or Fail secure), and low voltage cutoff effectively prolongs the solution
life concerning the ESC.

Other Features

A split system port to have linked programmer on this ESC permits certain to
● system ESC;
● upgrade ESC firmware (multifunction LCD system package becomes necessary);
● monitor/record journey information right away (with an information transmission module);
● power the surplus cooling fan (a fundamental piece of product package).

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 100A/140A
• Input : 5-12S LiPo
• BEC production : No

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Card : maybe not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 77.0x35.0x21.0mm
• Weight : 104g
