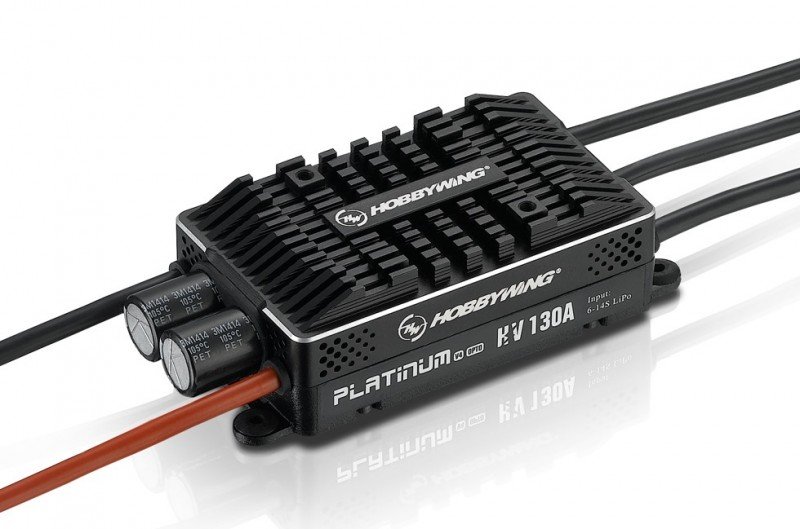

Platinum HV 130A OPTO V4 - 30209201 - HOBBYWING  [HW-30209201]

Super smooth Start-up

Platinum V4 serial things enables the motor to start with exceedingly smooth and stops tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 moments,
this may truly produce an amazing start up point for every single journey.

Exceptional Motor Speed Governing

High-performance 32-bit processor with a functional regularity of 72MHz with
higher-level algorithm optimizes the rate governing. Alongside the adjustable
governor parameters guarantee every pilot an exact control experience.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four stopping system modes. The braking system amount is adjustable in normal
braking system mode; in proportional braking system mode, the braking system force might be immediately
allotted great host to radio throttle stick; backwards stopping system mode, the
motor rotation could be changed via an additional transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : high Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC manufacturing : No

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : not Supported
• LED Program Card : maybe not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 154g

Applications
