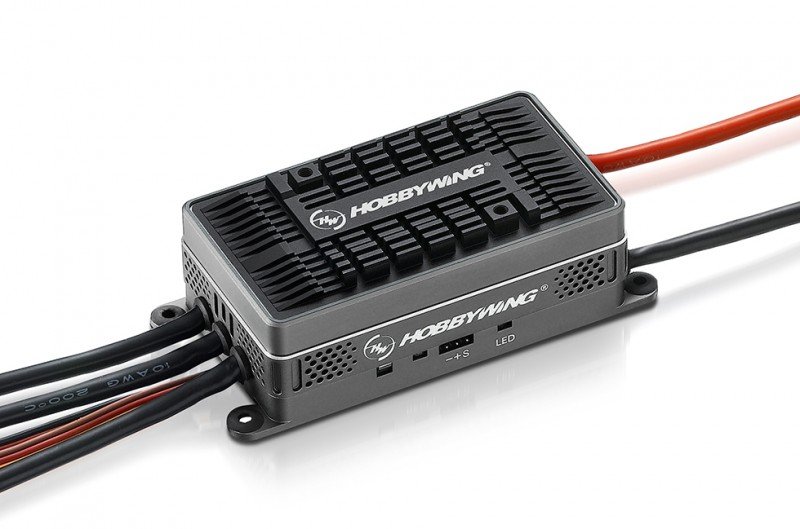

Platinum HV 160A V4 - 30203700 - HOBBYWING  [HW-30203700]

Original Design

The elegant circumstances are manufactured by Aluminum. Each cooling slot as well as its fin ended up being undoubtedly cautiously developed
and arranged, plus the instance experienced oxidation, coloring and edge-highlighting.

Revolutionary Heat Dissipation
Structure

The revolutionary "duo" stacking framework
permits all elements on both sides of
imprinted circuit panels to quickly conduct
heat towards the aluminum example.

Excellent engine Speed
Governing

High-performance 32-bit processor combined
with a high price algorithm makes the motor
speed-governing excellent for various
conditions. With the adjustable sensitiveness of
speed-governing, every pilot will find numerous
suitable settings regarding their helicopter.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : HV

Specifications

• Cont./Peak Present : 160A/200A
• Input Voltage : 6-14S LiPo
• BEC manufacturing : change Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : Separate Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 106.0x50.0x34.0mm
• Weight : 282g
