QuicRun 2435 G2 - 30404001 - HOBBYWING  [HW-30404001]

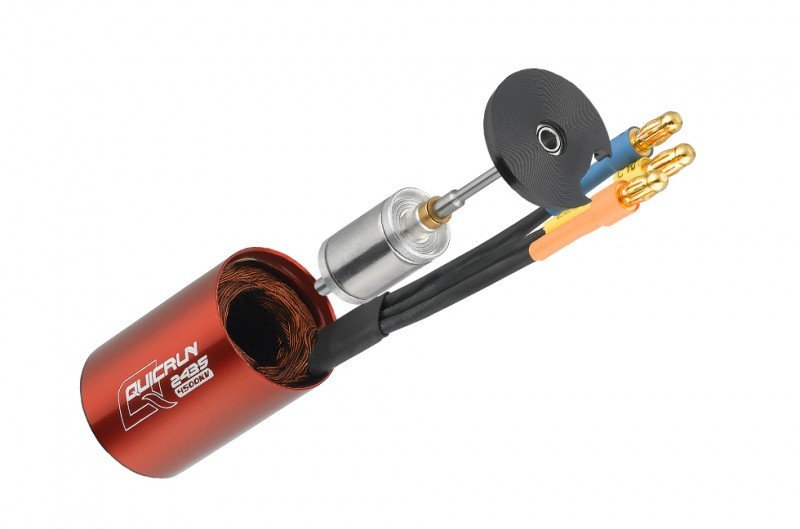

Great Construction

The utilizing a heat-resistant magnet linked steel situation and dual insulated windings,
high accuracy bearings, and rotor with a robust framework guarantees outstanding
performance and super durability.

Cost-effective

The QUICRUN-2435 is a cheap motor but appropriate
to 1/16^th & 1/18^th scale automobiles.

High Efficiency

The manufacturing performance with this particular engine has an effectiveness completely to 80percent.
In identical load condition, QUICRUN 2435 provides the greater effectiveness but reduced temperature
than many other 2435 engines.

Dustproof Design

The dustproof design implemented at load end with this specific engine makes this
QUICRUN 2435 motor suitable for monster trucks, buggies.

Plug and Play

Pre-soldered with top-notch silver connectors on engine leads,
the QUICRUN 2435 motor is a plug and play.

Item Specification

Type

• Scale : 1/16^th、1/18^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Pole Count : 2

Relevant Parameters

• KV Rating : 4500
• LiPo Cells : 2-3S
• No-load Current(A) : 1.5
• Max. Energy Output(W) : 150
• Current through the purpose of Max. Energy Output(A) : 33

Size & Weight

• O.D.(mm) : 24.0
• Length (mm) : 36.5
• Shaft Diameter (mm) : 2.3
• Weight (g) : 73
