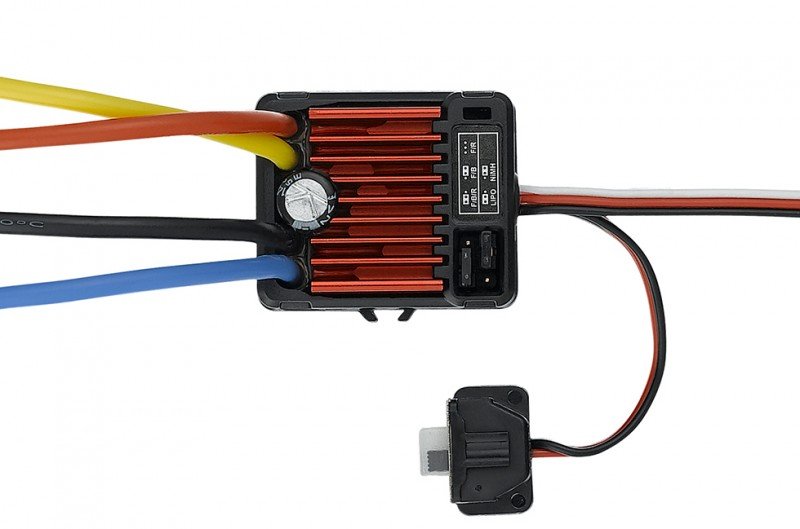

QuicRun WP 1060 Brushed - 30120201 - HOBBYWING  [HW-30120201]

Simple Operation

This ESC is very designed for brand new novices and intermediate modelers;
it not merely holds ahead the outstanding quality of HOBBYWING products and services but
simplifies the technique.

Tall Reliability & Durability

Reliable gear alongside higher level computer software technology allows the
QUICRUN WP 1060 Brushed never to simply provide high energy manufacturing but
also overload security the ESC circuit.

A simple task to Use

This ESC features car throttle calibration and parameter environment via jump caps is easy-to-use,
particularly highly relevant to fresh novices.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Present : 60A/360A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : modification Mode:6V/3A

Wires & Connectors

• Input Wires : Red-16AWG-100mm*1/Black-16AWG-100mm*1
• Output cables : B lue-16AWG-100mm*1/Yellow-16AWG-100mm*1
• Input Connectors : Big-sized TAMIYA Connector
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : No
• Voltage number : No
• Powered by : No

ESC Programing via

• SET Button on ESC : maybe not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : maybe not Supported
• Program Port : Jumper Cap

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 36.5x32.0x18.0mm
• Weight : 39g

Applications

• Motors : Brushed Motors
• Vehicles : 1/10^th Touring Cars/Buggies/Trucks/Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  (540/550 Size engines)
