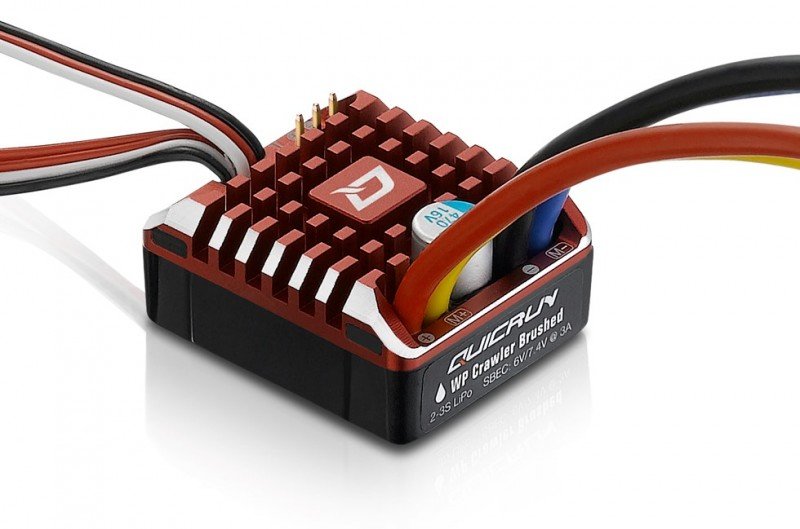

Hobbywing item HW-30112750 - QuicRun WP Crawler Brushed 30112750 Car ESC Motor / ESC / Cooling Fan
Special Design for 1/10th, 1/8th Crawlers
The dependable gear together with effective software (features an array of
programmable parameters like begin force, drag stopping system price, and etc.)
creates a great energy approach to 1/10th, 1/8th rock crawlers.
Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
The adjustable PWM regularity alongside advanced DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.
Strongly related any or all Weather Conditions
The waterproof and dust-proof design permits the WP-Crawler-Brushed
to be utilized in many weather conditions without any issue of
harm triggered in direction of ESC from water or debris.
Excellent Braking Performance
Hobbywing's revolutionary, fine-tunable drag stopping system cost and adjustable drag stopping system and stopping system force
somewhat improve the brag stopping system and invite users to truly have the exceptional braking performance.
Super Internal BEC
The incorporated switch mode BEC with a maximum manufacturing of 6A and voltage
adjustable between 6V and 7.4V licenses utilizing various standard servos,
high voltage servos and also other peripherals.
15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter services,
does relate to different cars and tracks.
Individual Programming/Fan Port
The split PRG/FAN slot on ESC can power another fan to increase ac
performance or connect the ESC to a Light-emitting Diode system industry for ESC development.
a Light-emitting Diode Program Box is Included
A standard, committed Light-emitting Diode system industry (included in the package) enables users to
prepare the WP-Crawler-Brushed effortlessly.
Item Specification
Type
- Scale : 1/8th & 1/10th
- Brushed/Brushless : Brushed
- Waterproof : Waterproof
Specifications
- Cont./Peak Present : 80A/400A
- Input Voltage : 2-3S Lipo/5-9 Cell NiMH
- BEC manufacturing : change Mode: 6V/7.4V@3A
Wires & Connectors
- Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1
- Output cables : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
- Input Connectors : XT60 Connectors
- Output Connectors : No
ESC Programing via
- SET Button on ESC : Supported
- LED Program Box : Supported
- LCD Program Box : perhaps not Supported
- WiFi Module : not Supported
- Program Port : individual system Port
Firmware
- Firmware Upgrade : perhaps not Supported
Size & Weight
- Size : 36.2x31.6x17.0mm
- Weight : 58.5g (w/Wires)
Applications
- Motors : Brushed engine (540/550/775 size machines)
- Vehicles : 1/8th,1/10th Rock Crawlers
- KV Rating/T Count : Brushed engine limitation with 2S LiPo/6S NiMH: ≥10T or RPM<[email protected]
Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<[email protected]
