HOBBYWING QuicRun 3650SD 10.5T G2 Brushless Motor 30404309 - Off-Road Ready  [HW-30404309]

HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309
Price:
NZD$98.55
Brand:
Hobbywing
Model:
HW-30404309
Condition:
Brand New
Write a review
alt="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309" title="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309"
alt="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309" title="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309"
alt="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309" title="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309"
alt="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309" title="HOBBYWING QuicRun-3650SD-10.5T G2 - 30404309"

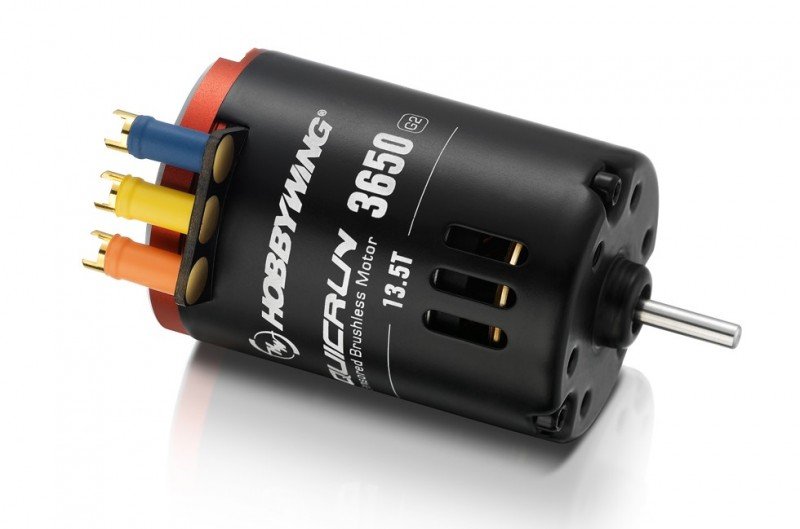

HOBBYWING 30404309 Sensored Motor Overview

The Hobbywing 30404309 brings compact, controllable power to 1/10 scale setups. Its sensored brushless design focuses on reliable throttle response for a variety of driving styles, from tight circuit races to rougher off-road runs.

Where It Excels

This unit accepts 2S and 3S LiPo batteries, so you can dial power delivery to match track conditions. Sensored commutation helps avoid cogging at low speed and improves corner exits, while the 3600 KV spec gives lively top end for racers chasing lap time.

Size, Weight and Balance

With a 36mm diameter and 52.8mm length, the motor is compact enough to fit common 1/10 bays while adding minimal mass. The 186 gram weight supports a lower centre of gravity, helping sharpen handling without heavy ballast.

Fitting Different Vehicles

The 30404309 works well in touring cars, buggies and similar 1/10 scale classes. Its fixed timing meets many event rules, and the sensored setup benefits drivers who value smooth starts and predictable throttle modulation.

Specifications

  • Scale: 1/10
  • Type: Brushless, Sensored
  • KV Rating: 3600
  • LiPo Cells: 2-3S
  • No-load Current: 2.8A
  • Dimensions: 36mm Diameter x 52.8mm Length
  • Shaft Diameter: 3.17mm
  • Weight: 186g
  • Timing: Fixed

If you want a compact, predictable motor that suits a range of 1/10 scale applications, the Hobbywing 30404309 is a practical option for both weekend racers and club competitors.

Sensored operation helps with smooth launches and low-speed control, which can make learning car setup and throttle feel easier for newcomers.
The 36mm by 52.8mm dimensions match most 1/10 motor bays, but check mount depth and shaft position to ensure correct pinion alignment.
Use a taller gear ratio for 3S to manage top speed, and a slightly lower ratio on 2S to keep the car responsive. Monitor temps and ESC limits when changing gears.
