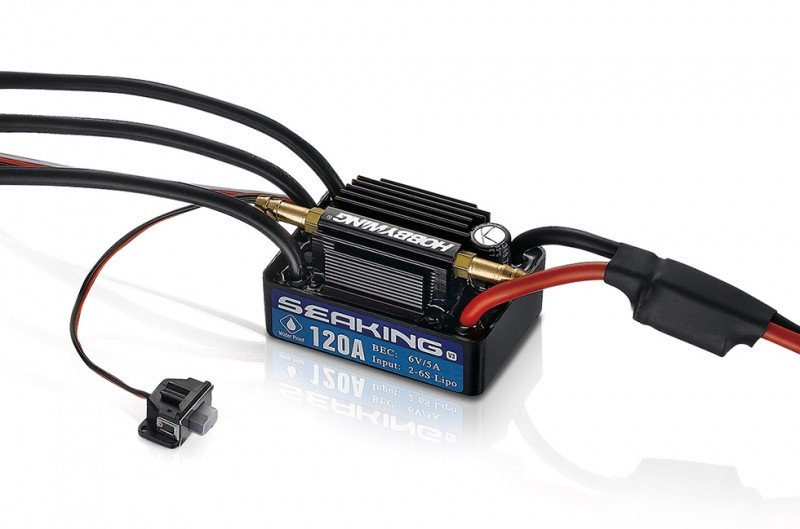

Seaking 120A V3 - 30302360 - HOBBYWING  [HW-30302360]

Effectiveness & Reliability

Built with top-notch elements and alongside cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and dependability.
numerous security adjustable choices can be found in use,
utilizing the using the low-voltage cutoff protection,
thermal security and throttle indication loss safety.

Effective Cooling System

The Hobbywing patented heat-conductive copper club target on energy board of
the Seaking 60A V3.1 can efficiently and effortlessly transfer temperature on integral CNC machined
billet aluminum water cooled temperature sink housing this is why maintaining
your ESC as cool feasible.

Waterproof Design

100percent waterproof without additional safety.

Integrated BEC

The integral switch mode BEC with a maximum production of 6Amp and
voltage of 6V have an understanding of this ESC befitting high voltage servo.

Unique Algorithm Design

The unique algorithm applied within the ESC result in the acceleration
more amazing and cruising more stable.

Individual PRG/FAN Port

The split PRG/FAN slot regarding ESC can connect ESC to a program
industry (via the trio-color development cable) and start ESC development.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 120A/720A
• BEC manufacturing : modification Mode:6V/5A

Wires & Connectors

• Output cables : Black-12AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : not Supported
• WiFi Module : maybe not Supported
• Program Port : particular system Port

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 68.5x39.4x32mm
• I.D./O.D. from fluid Cooling Pipe : Ф3.0/5.4 mm
• Weight : 150g

Applications

• Boat Length <110cm
