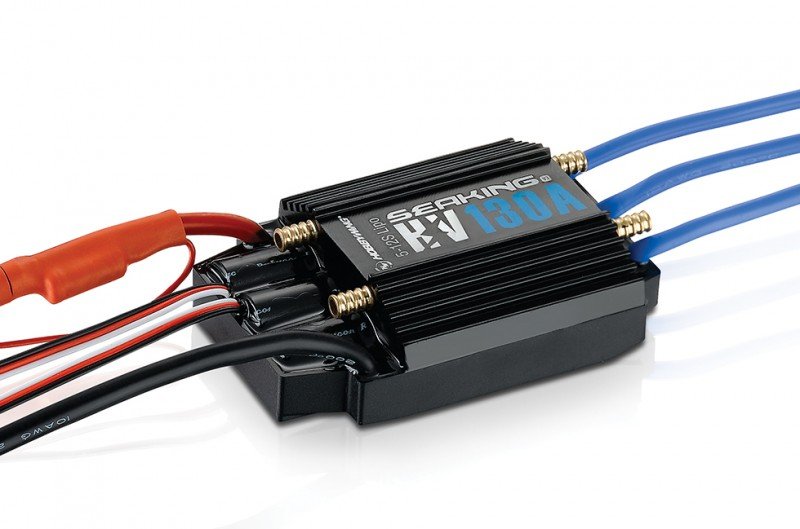

Seaking 130A HV V3 - 30301200 - HOBBYWING  [HW-30301200]

Effectiveness & Reliability

Built with top-notch elements and alongside cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
many security adjustable alternatives are presented used,
due to the using the low-voltage cutoff protection,
thermal safety and throttle indication loss security.

Effective Cooling System

The Hobbywing patented heat-conductive copper club target in energy board of
the Seaking 60A V3.1 can effortlessly and effectively get temperature towards integral CNC machined
billet aluminum water cooled temperature sink housing ergo keeping
your ESC as cool that you can.

Waterproof Design

100per cent waterproof with no need of additional protection.

Incorporated BEC

The incorporated switch mode BEC with a maximum production of 6Amp and
voltage of 6V appreciate this ESC ideal for high voltage servo.

Original Algorithm Design

The unique algorithm implemented inside ESC cause the acceleration
more amazing and cruising more stable.

Individual PRG/FAN Port

The split PRG/FAN slot on ESC can link ESC to a pc computer software
field (via the trio-color programming cable) and start ESC development.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 130A/720A
• BEC Output : No

Wires & Connectors

• Output cables : Blue-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : maybe not Supported
• WiFi Module : not Supported
• Program Port : individual system Wire

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 88.0x58.0x23.0mm
• I.D./O.D. through the fluid Cooling Pipe : Ф3.6/5.0 mm
• Weight : 182g

Applications

• Boat Length <150cm
