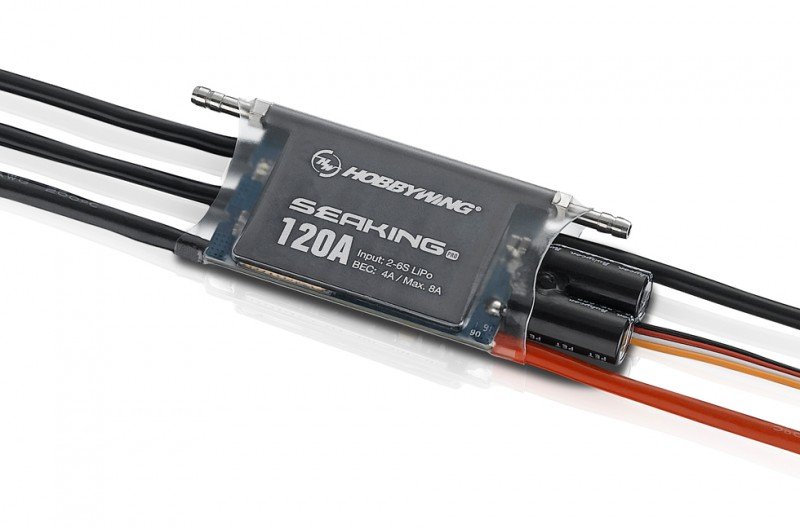

Hobbywing item HW-30302361 - Seaking Pro 120A 30302361 Boat ESC / BEC Motor / ESC / Cooling Fan
Competition Design
The light-weight for this specialist 120A was created to have together the users’ needs of a light
fat product for many marine competition which fat is a problem of cost and
endurance. The core system for top-level competition services and products guarantees someone
first-class control and “abundant” programmable parameter products for different
competition surroundings. (* The ESC is quite highly relevant to ECO/MONO1)
Splash-proof
The entire circuit board and all kinds of sun and rain about this experienced nano-coating
therapy; this might cause the Seaking specialist 120A ESC splash-proof.
High Voltage integrated BEC
The integral switch mode BEC with a maximum production of 8A and adjustable
voltage of 6V/7.4V result in the ESC appropriate different high voltage servos.
High Durability & Reliability
Reliable gear (easily put. MOSFETs with exceptionally low internal opposition) along side higher level
applications (features low-voltage cutoff protection, thermal security, throttle indication loss security, and
etc) guarantees the durability and dependability concerning the ESC and appropriate products.
Innovative Turbo Function
The world’s initial marine ESC to own implemented the turbo timing function
that will provide you with the person the inside into the competition with instant turbo boost.
Programming/Upgrading Wirelessly
With Hobbywing’s WiFi module and iPhone or an Android os os phone (utilizing the
HOBBYWING WiFi Link software applications setup), an individual can from another location plan
parameters or update firmware without making the control stand.
Effective Cooling System
The Hobbywing patented heat-conductive copper club target in energy board
about the ESC along side water ac module effortlessly and efficiently
transfers heat toward exterior therefore maintaining your ESC as cool as youare able.
Regular Firmware Updates without Charge
You can update the ESC using the Hobbywing WiFi/USB LINK applications, a WiFi
module/LCD system package and a smartphone /laptop. Hobbywing updates its ESC
firmware frequently giving you upgraded features more often whenever available.
Item Specification
Type
- Brushed/Brushless : BL
- Waterproof : Waterproof (IP55)
Specifications
- Cont./Peak Present : 120A/760A
- InputVoltage : 2-6S Lipo/6-18 Cell NiMH
- BEC manufacturing : modification Mode: 6V/7.4V,4A
Wires & Connectors
- Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
- Output cables : Black-12AWG-150mm*3
- Input Connectors : No
- Output Connectors : 4.0mm silver Connectors (Female)
ESC Programing via
- Transmitter : Supported
- LED Program Box : perhaps not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : particular Program Wire
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 96.6x37.9x10.3mm
- I.D./O.D. of the Water Cooling Pipe : ะค2.0/5.5 mm
- Weight : 87.5g
Applications
- ECO, Mono1/Other Competition vessels (≤100cm)
