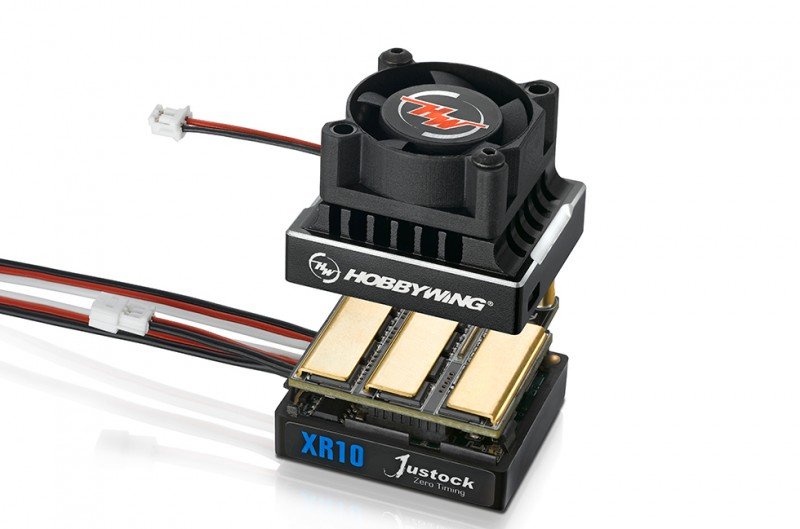

XeRun XR10 Justock - 30112000 - HOBBYWING  [HW-30112000]

Zero-timing Design

The XR10 JUSTOCK ESC is made especially
for Zero-timing rushing program. Its timing system has
been entirely set to ZERO level. Utilizing the
same branded motor and winding can very quickly ensure
every racer has comparable power system for
100percent reasonable and competitive competition.

Tall Reliability & Durability

Reliable equipment and advanced level software
technology enables the XR10 JUSTOCK not to just
provide high energy production, but in addition overload
safety with this specific ESC circuit.

High efficient Heat
Dissipating System

The modified heatsink, which advances the
area, along with HOBBYWING
patented copper heat-conductive meals which
are connected to the MOSFET board permits the
inside heat to be quickly utilized in the
heatsink for dissipation. Utilizing the
high-performing detachable cooling fan, a
highly dependable temperature transfer system for
maximum cooling is achieved.

Tiny Footprint

With its compact design, the XR10 JUSTOCK fits
numerous framework from 1/10th touring cars, 1/12th pan
vehicles and F1.

Regular Firmware Updates complimentary
of Charge

You can update the XR10 JUSTOCK utilising the Hobbywing USB
LINK computer programs, a multifunction LCD system package and a mobile computer.
Hobbywing updates its ESC firmware usually providing you with
upgraded features more regularly whenever available

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

Specifications

• Cont./Peak Present : 60A/380A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC manufacturing : 6V@2A

Wires & Connectors

• Input cables : Blue-14AWG-200mm*1/Black-14AWG-200mm*1
• Output cables : Red-14AWG-200mm*1/Yellow-14AWG-200mm*1/Orange-14AWG-200mm*1
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 25x25x10mm
• Voltage amount : 5-8.4V
• Powered by : operating on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Programming Wire : Programming/Throttle Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 33.0x28.0x31.5mm
• Weight : 46g

Applications

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : 1/10^th,1/12^thTouring Car/Buggy tournaments (especially stock Class)
• KV Rating/T Count : 2S LiPo: 1/10^th Touring Cars≥8.5T, 1/10^th Buggies≥11.5T
  3S LiPo: 1/10^th Touring Cars≥13.5T, 1/10^th Buggies≥17.5T
  3650 Motors
