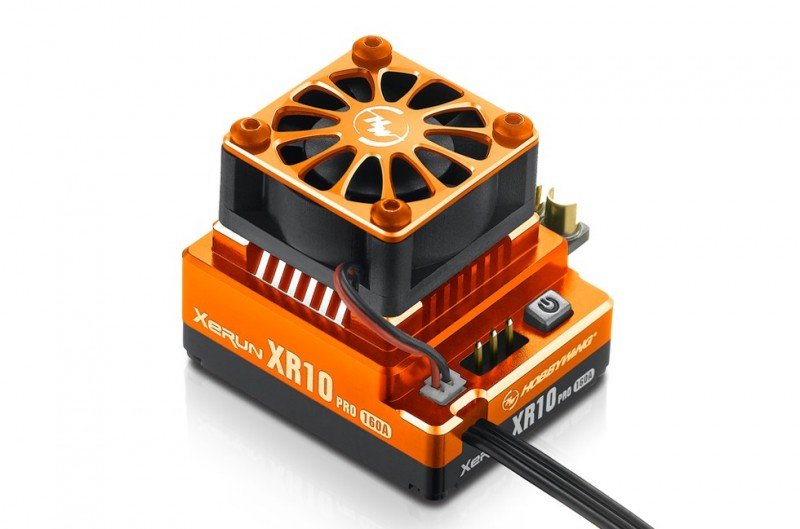

XeRun XR10 PRO 160A Orange - 30112601 - HOBBYWING  [HW-30112601]

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

Specifications

• Cont./Peak Present : 160A/1200A
• Input Voltage : 2-3S LiPo/4-9 Cell NiMH
• BEC production : Swich Mode：6V/7.4V,4A

Wires & Connectors

• Input Wires : Black-12AWG-200mm*2
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Quantity : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : maybe not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : certain system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 37.5x30.9x31.6mm (w/Fan&Fan Shroud)
• body fat : 95g(w/ cables)
