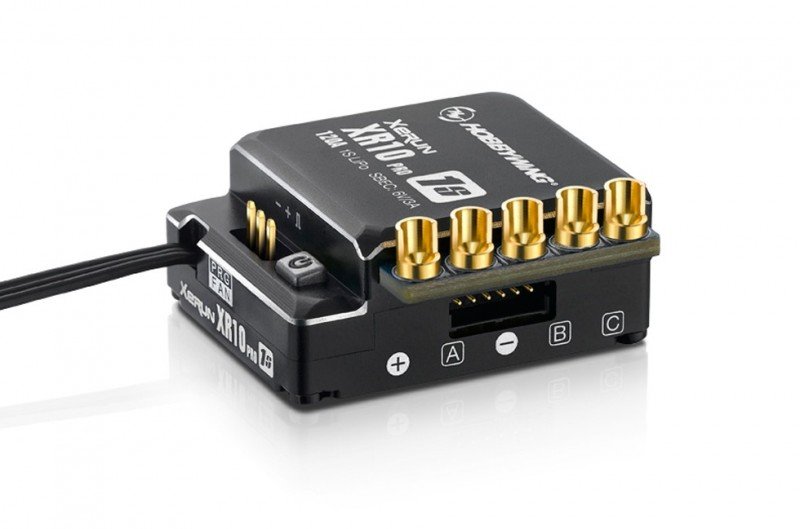

Hobbywing item HW-30112603 - XeRun XR10 PRO 1S 30112603 Car ESC Motor / ESC / Cooling Fan
Special Design for 1/12th Scale Top Racing
Reliable gear and great software (contains 5 typical ready-to-use pages)
creates a good power solution to1/12th scale top touring vehicle racing.
Tiny Size & Light Weight
Height of 15.9mm (6mm smaller compared to the past V3.1 1S ESC) saves space and makes the
installation convenient; fat of 35.6g (12g lighter versus past V3.1 1S ESC)
provides more fat margin whenever adjusting the amount of because of this framework.
Super BEC
Internal BEC features booster circuitry can output the current/voltage because high as 6A/6V and
power various servos without connecting any additional receiver battery power.
Built-in Electronic modification & Capacitor Module
The integrated electronic switch with a lifespan of over 50000 on/off rounds
entirely solves the difficulties like stuck reed, rusted contact points, and
automatic shutdown traditional technical switches frequently have actually actually.The inside
capacitor module saves room and makes the wiring quick and easy neat.
Programming/Upgrading/Data
Reading Wirelessly
With Hobbywing’s “WiFi Express” module and iPhone or an Android os os os phone (with the HOBBYWING WiFi Link
software setup), the consumer can from another location prepare parameters, update firmware and
check relevant information the ESC without making the control stand.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee accurate and accurate
throttle and stopping system control for a number of classes of tournaments (esp. the inventory system).
Separate Programming/Fan Port
The split PRG/FAN slot regarding ESC can power another fan to maximise ac performance
or connect the ESC to a LCD system industry or WiFi module for ESC development.
Revolutionary Data-logging Function
This ESC features the data-logging function which could record the utmost ESC/motor
temperature, RPM and and so forth. instantly and enables users to test those
information via a LCD system package or WiFi module after each and every usage.
Item Specification
Type
- Scale : 1/12th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : No
Specifications
- Cont./Peak Present : 120A/830A
- Input Voltage : 1S Lipo/3-4 Cell NiMH
- BEC production : modification Mode: 6V@3A
Wires & Connectors
- Input cables : Red-12AWG-200mm*1 Black-12AWG-200mm*1
Red-14AWG-200mm*1 Black-14AWG-200mm*1 - Output Wires : Black-12AWG-200mm*3 Black-14AWG-200mm*3
- Input Connectors : No
- Output Connectors : No
ESC Programing via
- SET Button on ESC : not Supported
- LED Program Box : perhaps not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : particular system Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 37.5x31x15.9mm
- Weight : 35.6g
