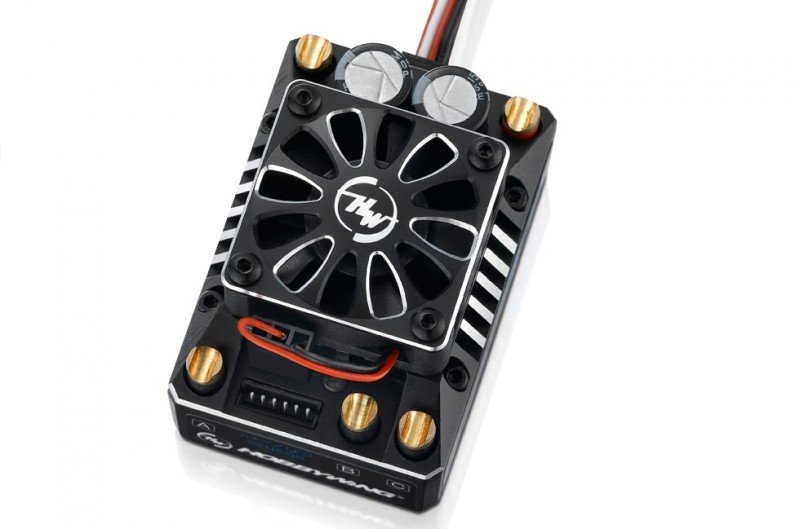

Hobbywing item HW-30113301 - XeRun XR8 SCT 30113301 Car ESC Motor / ESC / Cooling Fan
Full-sensored Mode Supported
The 1st 1/8 scale competition ESC which will work the full-sensored mode anyway
times (whenever combining it with a HOBBYWING matching engine).
Turbo Timing Technology
Turbo timing technology is implemented by the XR8 SCT to unleash many energy
of a HOBBYWING matching engine.
Small & Light construction Design
Small (30.1per cent smaller compared to XR8 Plus in proportions) and light (36.5g lighter than XR8
Plus in fat) framework design particularly simplifies creating
the power system (esp. for cars like buggy and touring automobile
with compact framework).
Programming / Upgrading /
information reading wirelessly
With Hobbywing's "WiFi Express" module and iPhone or an Android phone (aided by the HOBBYWING
WiFi Link software installed), the customer can from another location plan parameters, upgrade firmware and
check always relevant details about the ESC without making the control stand.
Coasting
The XR8 SCT provides a smooth off-throttle coasting function, which simulates the impression
of inertia and energy of a large-scale car driving experience. This may greatly boost the
performance of builds making use of big, high-powered motors as electromagnetic drag
becomes an amazing factor in unexpected deceleration whenever in off-throttle
position, adversely impacting driving performance and basic maneuvering.
Capacitor Thermal Protection
Capacitor thermal protection implemented by the XR8 SCT will effortlessly prevent capacitors
from exploding and causing irreversible injury to the ESC as a result of overload.
Tall Voltage incorporated BEC
High voltage incorporated BEC with a manufacturing up-to-date completely to 15 Amp and a
switchable production voltage of 6V-7.4V enables users to
use different high torque and high voltage servos.
Tall Reliability & Durability
Built with tough and top-notch elements and in combination with cutting-edge firmware,
the XR8 SCT can deliver unmatched power and satisfaction perhaps the absolute numerous hardcore
of rushing applications, it will always be responsive enough to shield it self from harm due
to overloading because of genuine punishment, overuse and/or specific mistake.
Advanced and Secure Electronic Switch
Electronic switch with a lifespan of over 50000 on/off cycles, housed in a totally waterproof,
dust-proof and shock-resistant design.
Ultra-Reliable Cooling System
HOBBYWING's patented air-con technology utilizes proprietary heat-conductive copper
bars to quickly and effectively get all interior temperature through MOSFET board towards
included CNC machined billet aluminum heatsink housing. The cooling fan adopts a
shockproof mounting which efficiently reduces the chance
of fan harm considering vehicle’s regular jumps.
Wide applicability
This XR8 SCT ESC is not only strongly related 1/8th buggies and short-course
automobiles and 1/10th short-course cars, cars and monster automobiles.
Item Specification
Type
- Scale : 1/8th&1/10th
- Brushed/Brushless : BL
- Sensored/Sensorless : SD
- Waterproof : No
Specifications
- Cont./Peak Present : 140A/880A
- Input Voltage : 2-4S Lipo/6-12 Cell NiMH
- BEC manufacturing : modification Mode: 6V/7.4V,6A
Wires & Connectors
- Input Wires : Red-12AWG-200mm*1/Black--12AWG-200mm*1
- Output Wires : Blue -12AWG-200mm*1
Yellow-12AWG-200mm*1
Orange -12AWG-200mm*1 - Input Connectors : No
- Output Connectors : No
Fan
- Size : 30x30x10mm
- Voltage quantity : 5-7.4V
- Powered by : BEC
ESC Programing via
- SET Button on ESC : perhaps not Supported
- LED Program Box : not Supported
- LCD Program Box : Supported
- WiFi Module : Supported
- Program Port : PRG/Fan Port
Firmware
- Firmware Upgrade : Supported
Size & Weight
- Size : 54.1x37.2x36.1mm
- Weight : 90.5g
Applications
- Motors : SL BL Motors
SD BL Motors - Vehicles : 1/10th SCT/Truck/Monster Truck & 1/8th Buggy/On-road Racing
- KV Rating/T Count : With 2S LiPo/6S NiMH: 3660 size engine, KV≤6000
With 3S LiPo/9S NiMH: 3660 size engine, KV≤4000
With 4S LiPo/12S NiMH: 3660 size engine, KV≤3000
With 4S LiPo/12S NiMH: 4268 size motor, KV≤2500.
