Hobbywing 30401053 4300KV Sensored Motor for 1/10 Scale  [HW-30401053]

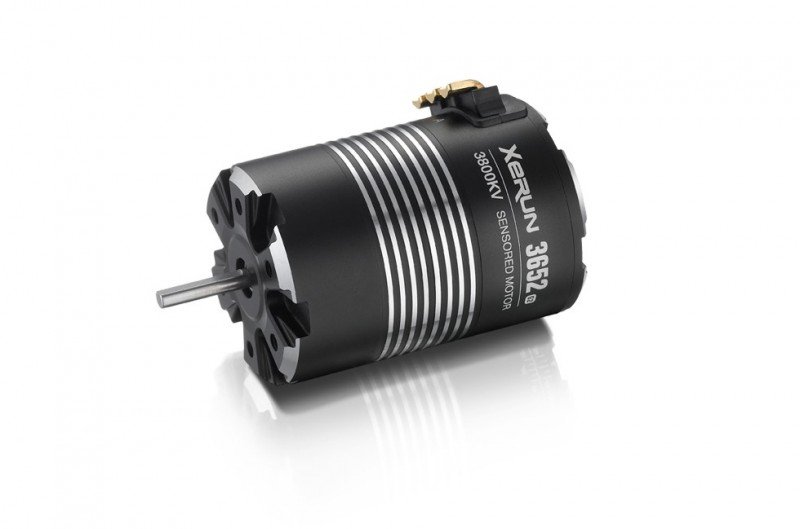

HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053
Price:
NZD$0.00
Brand:
Hobbywing
Model:
HW-30401053
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"
alt="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053" title="HOBBYWING XERUN-3652SD-4300KV-D3.175-G2 - 30401053"

Precision throttle control from Hobbywing

The Hobbywing XERUN-3652SD-4300KV-D3.175-G2 motor is engineered to provide refined power delivery for 1/10 scale RC rigs. Its sensored brushless setup ensures smooth acceleration and predictable control for focused drivers.

Why racers pick this motor

  • Sensored Design: Smooth commutation for consistent low-end torque.
  • KV Rating: 4300KV tuned for a balance of speed and drivability.
  • Adjustable Timing: 20-40 degrees lets you dial in response to surface grip.
  • Compact Build: 36mm diameter and 52.5mm length suitable for standard 1/10 layouts.

Specifications

  • Type: Brushless, Sensored
  • Pole Count: 4
  • LiPo Cells: 2S
  • No-load Current: 4.2A
  • Resistance: 5.2mΩ
  • Shaft Diameter: 3.175mm
  • Weight: 187g

Well suited to drivers seeking consistent throttle and easy tuning across different track surfaces.

Installation is straightforward for most 1/10 chassis thanks to the common dimensions and 3.175mm shaft, though minor mount or pinion alignment may be required.
To exploit sensored startup and smooth low-speed control, use a sensored ESC rated for your battery and expected current loads.
Check bearings and cooling after racing sessions, keep gearing clean and ensure the motor runs within safe temperature ranges to prolong life.
