KC10 Platform 1:10 Scale Crawler — TOYOTA LAND CRUISER 60 34801T1 by Kyosho  [KY-34801T1]

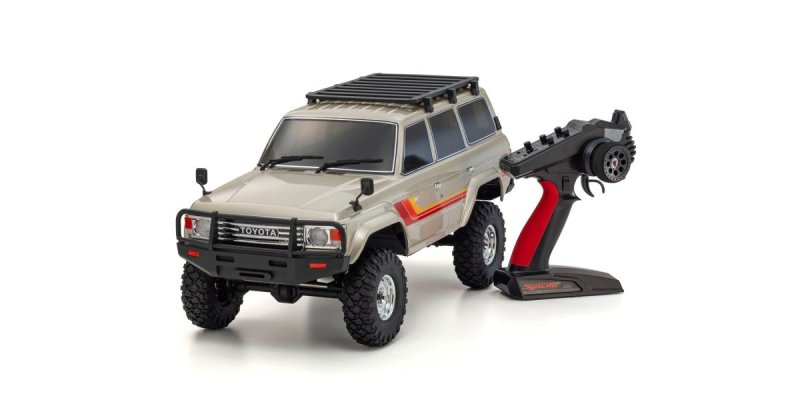

Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1
Price:
NZD$1,023.56
Brand:
Kyosho
Model:
KY-34801T1
GTIN:
4548565514748
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"
alt="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1" title="Kyosho 34801T1 - 1:10 Scale Radio Controlled Electric Powered 4WD KC10 Series readyset TOYOTA LAND CRUISER 60 Body Type1"

KC10-based Kyosho 34801T1 Land Cruiser 60: A ready-built scale crawler platform

Purposeful chassis and drivetrain layout

The 34801T1 pairs the Land Cruiser 60 shell with Kyosho's KC10 pressed-steel main frame and a shaft-driven 4WD system, a layout engineered for steady low-speed traction and predictable handling during technical crawling.

Factory gearbox choices and DIG explanation

While the KC10 platform supports an optional 2-speed kit and a DIG module, the Readyset ships with the two-speed mechanism locked in the low gear setting and DIG disabled. When added, DIG locks the rear output and keeps front drive active to tighten turning circle for tight trail maneuvers.

Body fidelity and mounting decisions

The model reproduces the Land Cruiser 60 profile and includes separate roof rack and rear ladder parts. Kyosho's clipless mounting minimizes external fixings so the model presents a clean scale appearance while allowing convenient removal for maintenance.

Included electronics and drivetrain parts

Factory assembly includes a pistol-grip transmitter and a sealed receiver installation. Power is supplied by a 550-size G32L 32T brushed motor and steering is handled by a 15kg-class high-torque servo. Batteries and charger are not supplied.

Who this Readyset is aimed at

The Kyosho 34801T1 appeals to modelers who prioritise scale realism and mechanical authenticity, including collectors seeking display-quality pieces and hobbyists who plan platform-level upgrades.

Specifications

  • Label: Kyosho 34801T1
  • Scale: 1:10
  • Chassis: KC10 pressed-steel main frame
  • Drive: Shaft-driven 4WD
  • Length: 552 mm
  • Width: 236 mm (excluding mirrors)
  • Width (including mirrors): 255 mm
  • Height: 248 mm
  • Wheelbase: 317 mm
  • Tread: 208 mm (F/R)
  • Weight: Approx. 3,080 g (with 2-cell LiPo installed)
  • Tires: 110 x 37 mm
  • Gear Ratio: 49.1:1 (21.1:1 in high gear with CLW001)
  • Motor: G32L brushed motor (550-size 32T)
  • Electronic Speed Control (ESC): Not Included

Out of the box the Kyosho 34801T1 provides a detailed Land Cruiser 60 Readyset on a crawler-focused chassis, giving modders and display collectors a solid starting point.

The pressed-steel KC10 frame keeps mass low, lowering the centre of gravity to help the vehicle remain stable on steep or uneven terrain typical in crawling scenarios.
A pistol-grip transmitter and a sealed receiver are included from the factory; the receiver is designed to resist dust and light moisture but is not rated for full submersion.
Both DIG and the 2-speed are platform accessories for the KC10 gearbox. Install instructions come with each kit and they are fitted internally to change shifting and rear-lock behavior.
The Readyset uses a G32L 550-size 32T brushed motor for torque-focused performance and a 15kg-class steering servo chosen to cope with the loads of slow-speed crawling.
Yes. Roof rack and ladder are separate parts and the clipless mounting allows the body to be removed for painting or scale detailing without visible external fasteners.
Definitely. The Readyset is a convenient base for swapping in higher-performance ESCs, motors, or different battery setups to match personal driving style.
