Kyosho item 30635 - Radio Controlled Electric Powered 4WD Racing Car FANTOM 4WD - 1/10 scale AWD On-Road Pan Cars assembly kit
In august 1983, simply half each year after its 1st, another Kyosho unit blew its well-versed rivals away through the entire 5th JMRCA 1/12 electric Racing automobile Japan Nationals, held at a particularly built track at Nakayama Racecourse Chiba Prefecture. RC on-road racing wound up being changed for a generation by the 1/8 FANTOM 20 EXP 4WD motor race automobile, including its bloodlines went strong inside FANTOM EP 4WD. The FANTOM EP 4WD revives its glory days as the first on-road battle model and 9th addition towards Kyosho Vintage Series!
The 1/12 on-road rushing scene of the time framework showcased lots of designs specially 3-point suspension system system system and 4-wheel separate suspension system system system, 4WD ladder-chain drive + ahead one-way bearing system that typically didn’t create front drive but drove the within wheel whenever energy was indeed used through turns for stable cornering and minimal drive loss. The FANTOM EP 4WD pioneered requirements just like the FRP framework that created a suspension effect that delivered optimal fat security internally wheel. The 2020 variation model not just recreates the look and feel of initial, and keeps the superior cornering price and safety, also on low hold areas, using its part-time 4WD and front side a great means. As with every Vintage Series models, each key component is good initial design but finished up being improved to handle the newest energy sources and deliver the FANTOM’s distinctive razor-sharp management and control on contemporary RC circuits.
Experience superior driving because of the nostalgic avant-garde design and functional beauty connected with 1/12 scale FANTOM EP 4WD!
The planet's very first electric vehicle to make use of a ladder string drive and front component one-way bearing. The technical meal has also been machined with a mounting opening through which a Kyosho LeMans 240S price controller (No: 37051, provided individually) could be setup rather than a rotary price controller. Reproducing the true secret energy and satisfaction with this initial Le Mans 480T, the Le Mans 480T Brushless engine (No.37033) with long shaft to suit the Fantom can be obtained alternatively.

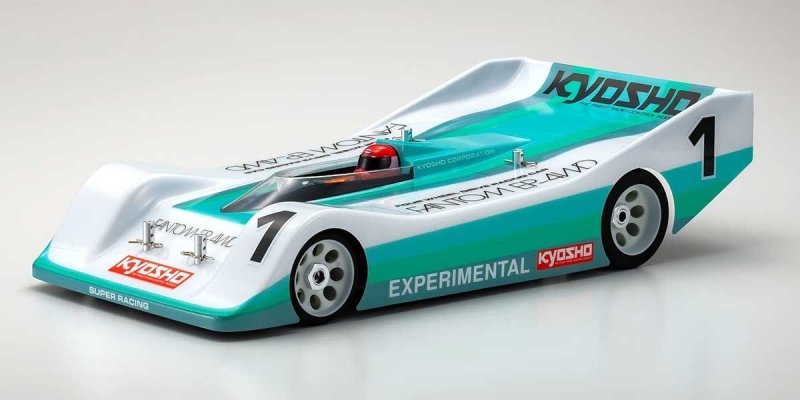

Kit includes the BW Spider human anatomy that delivered triumph on very first at Japan Nationals in 1983 which can be made up of brief nose design and exceptional aerodynamic stability producing high downforce for quick steering faculties. Wing (No.EFW001) generally available as a selection.
To carry out the increased energy of modern engines, the very first resin front part sprocket is changed to an integrated unit cut steel one-way bearing owner for superior durability and reliability through drive system.
Precision CNC machined motor mount is difficult anodized in white (clear). Minimal center of gravity is accomplished through less motor mounting location that fits compared to the unit cut motor mount, which includes been an optional improvement during the very first Fantom.
The trunk axle includes a height adjuster. Chassis height is modified 1.3mm up-down by reversing the mounting method. More over, the wheelbase can be changed 1mm by swapping the rest of the and right adjusters, consequently permitting modification of sequence anxiety.
Designed with a 48-pitch gear differential integrating ball bearing that delivers smooth operation, despite the medial side force associated with the initial works-spec.
Stamped FRP elements have really in fact all been upgraded to CNC cutting. Independent servo saver mount meal within subsequent models typically included as standard. Change of human anatomy mount with grommet screws towards radio meal enables framework flex become used in combination with 4WD for razor-sharp cornering performance. A huge component axle can get easily, included in Kyosho models due to the fact the Plazma.
Complete bearing needs. The screw employs a hex kind that can be firmly tightened. Includes wheel hub and wrench for diff modification.
The kit includes one few pre-glued tires so a tire setter is not needed. Original sponge tires happen changed with plastic sponge for notably enhanced hold and opposition to hold. Tires happen changed towards the modern super tough nylon for increased durability
TECHNICAL INFORMATION
- Length 345mm
- Width 172mm
- Height 83mm
- Chassis type Chain drive4WD
- Wheelbase 199-200mm(Adjustable)
- Front tread 135mm
- Rear tread 133mm
- bodyweight approx.1,500g(with GAB4201)
- Motor 540class(both offered separately)
- 1st gear ratio 3.38:1
- Front tire diameter φ48
- Rear tire diameter φ53
- Front tire width 23mm
- Rear tire width 35mm
- Used propo 2~3ch 2servo
- Maximum price 55km/h (with Le Mans480T BL)
- Driving Time approx.23minutes(with Le Mans480T BL)
- Depends on driving conditions
KIT CONTENT
- Chassis kit
- Adhesive shaped tire
- Unpainted body
- Decal
- Wheel wrench(12/4.0)
- 5.5/4.5wrench
REQUIREMENT TO RUN
- 2ch, 1 servo, 1 ESC R/C system
- Motor
- Battery for chassis
- Battery charger
- Batteries for transmitter
- Paint for body
- Available size:Receiving machine46x34x18mm/Servo:35.5x15x28.6mm/ESC:40x40x26mm/Battery:138x48x23mm
- Suggested item:No.82151Noble NB4 4ch Tx/Rxset/GAB4201 Gens ace LiPo 4000 right pack(45C/7.4V)
- Suitable servo:FUTABA S9670SVBLS671SVi/SANWA PGS-HRSRG-HSSRG-HRPlease correct it with two screws with regards to the servo mount./KO RSx3-12 H.CRSx3-12RSx3-12 GT versionRSx3-12 World spec variation
