Kyosho item 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Set - 1/27 scale MINI-Z MR-03 AWD On-Road assembly kit
The separable receiver design pioneered regarding MR-03EVO is actually available with all the current new AWD model MA-030EVO, on the basis of the FWD MA-03F framework. The MINI-Z is at very first beautifully created using a receiver, servo and rate controller, within the MR-030EVO the receiver wound up being intended to be purchased and place up as another item allowing the model to be used along with other makes of transmitter such as for example KYOSHO (KT18/EX-6/EX-6R/KT-531P/KT-432PT), KO (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), Flysky (Noble NB4). Besides, top AWD show spec MA-020VE PRO included a 3-stage steering servo product, though the new MA-030EVO includes the furthermore greater spec 5-stage gear sort from MR-03. Also, a distinctive CPU for servo control improves the control speed of positioning feedback plus the updated control system provides top steering feel of any AWD model through improved responsiveness and linear a reaction to motorist control. The one-piece heatsink and aluminum situation concerning the KYOSHO SPEED ABODE XSPEED 85 (8500KV) brushless engine keeps it cool for maximised performance. The I.C.S. supervisor allows accuracy environment changes as well as the switch to a brushed motor, which was impossible with past framework sets. Switch between drift and hold driving designs to begin with to understand best in AWD driving performance.
MA-030 AWD framework is started on MINI-Z FWD MA-03F chassis.Chassis set comes with split ESC and receiver unit.Includes KYOSHO SPEED HOUSE 85 brushless engine (KV8500).I.C.S supervisor allows accurate environment control making use of of either brushless or brushed motor.Independent CPU control with an increase of processing cost provides more accurate control.Full ball bearing requirements decreases drive loss.Includes back twin wishbone suspension.Compatible with L（94mm） and LL（98mm） wheelbases. Simply LL（98mm） works extremely well with straight back double wishbone suspension system system set. Befitting MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set the various MR-03F framework models
TECHNICAL INFORMATION
*Scale: 1/27.6
*Length: 126.0mm
*Width: 65.0 - 76.0mm (adjustable by wheel offset)
*Height: 36.0mm
*Chassis Type: MA-030
*Wheelbase: 94.0mm (just with strut rear suspension system system system set up), 98.0mm (factory put together)
*Weight: 135g
*Brushless 8500KV
*Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
*Tire Diameter (F/R): supplied individually
*Tire Width (F): offered individually
*Tire Width (R): sold independently
*Transmitter: maybe not included
*Top rate: approx. 17km/h
*Runtime: approx. 50min.
KIT CONTENTS

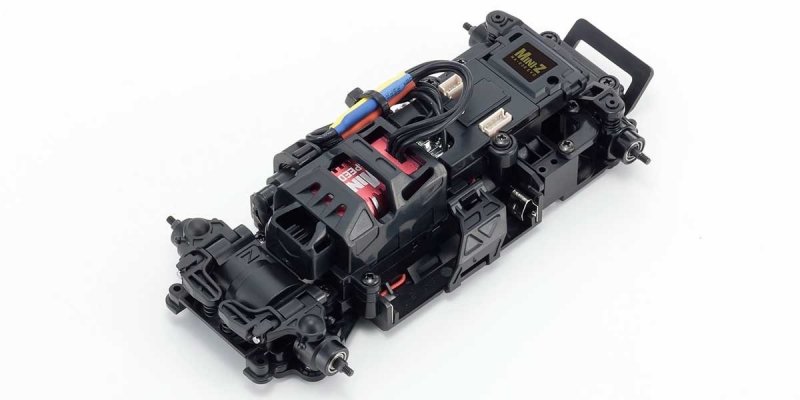

CHASSIS SET ARTICLES
*Factory-assembled chassis packed with EVO main item set up
*Pinion Gears (15T, 17T, 19T, 21T)
*DWS transformation elements *Front tread modification elements
*Pinion gear therapy device
*Spare wheel peanuts
*Wheel wrench
*Center shaft for L wheelbase
*Wide back suspension system system fingers for DWS
*swing shafts (4 x long)
*Spur gears (27T, 29T, 31T)
ESSENTIAL FOR OPERATION
REQUIRED FOR PROCEDURE
*8 x AAA batteries
*Auto Scale Collection (body, tires and tires)
*Transmitter
*MINI-Z EVO receiver unit worth the transmitter used
